MONROE 32266 Part Description
Manufacturer
Product Description

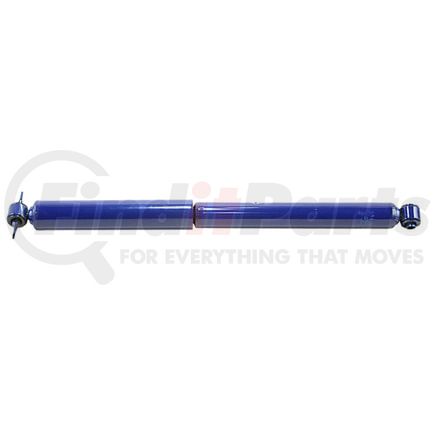

Monro-Matic Plus Suspension Shock Absorber
Features & Benefits
- CONSISTENT RIDE -- Velocity Proportional Valving (VPV) technology and all-weather fluid containing special additives to reduce friction and ensure smooth rod reaction and an overall smoother ride
- RELIABLE PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration
- RESTORES RIDE AND HANDLING -- Larger bore provides more efficient damping control to provide consistency and a smooth ride (where applicable)
- BUILT TO LAST -- Self-lubricating fluid seal retains gas and reduces excessive friction against the piston rod to help reduce premature wear while banded piston and bronze reinforced guide provide durability
- GET MORE MILES FROM YOUR RIDE -- Designed and validated to meet OE spec and deliver consistent performance
MONROE 32266 Specifications
Product Attributes
| Lower Mount Code | LS92 |
| Upper Mount Code | XP7 |
| Dust Shield Included | Yes |
| Includes Bump Stop | No |
| Internal Rebound Bumper | Yes |
| Hydraulic Lockout | No |
| Part Description | Shock Absorber |
| Compressed Length | 15.5 IN |
| Dust Shield Material | Metal |
| Extended Length | 25.375 in |
| Gas Charged | Yes |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 14MM Sleeve ID X 1.11/16" Sleeve OAL |
| Parts Pack(s) | None |
| Travel Length | 9.875 in |
| Upper Mount Type | Cross Pin Mount - Closed Ended, 5/16" Hole ID (Both Ends) X 2.7/8" Pin Length (Hole Center to Center) |
| Compressed Length | 393.7 MM |
| Extended Length | 644.5 MM |
| Travel Length | 250.8 MM |
| Shock Absorber Rod End Measuring Point | Center of Cross Pin |
| Shock Absorber Body End Measuring Point | Center of Loop |
Additional Information
| MSDS Sheet Number | 1164 |
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708801600 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598025494 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MONROE 32266 Cross References
| Brand | Part Number |
|---|---|
| 32266MM, FT1Z1731012EA | |
| Chevrolet | 12474702, 12474704, 12474705, 12474709, 12474710, 12474711, 12474712, 12474719, 15002528, 15002529, 15150925, 15150926, 15150928, 15150929, 15152942, 15152943, 15152944, 15718076, 15720387, 15727198, 15727199, 15735786, 15741932, 15742099, 15991799, 15991800, 15991801, 15991802, 15991803, 15991804, 22064647, 22064678, 22064679, 22064684, 22064685, 22064838, 22064841, 22065237 |
| GABRIEL | 43180, 61565, G63638, G63897, 61687, 61688, 81789, 58638, G63898 |
| GMC | 12474719, 15002529, 15720387, 15727198, 15727199, 15735786, 15991799, 15991800, 15991801, 15991802, 15991803, 15991804, 22064647, 22064678, 22064679, 22064684, 22064685, 22064838, 22064841, 22065237 |
| KYB | KG5479, 344263, KG5188, 565033, KG54101, 565034, 565087, 565061, 565074, 344262, 344273, KG54100 |
| NAPA Response | 94131 |
| Sensen | 12140409 |
| UNITY AUTOMOTIVE | 2-251240-001, 251240, 4-211150-251240-001 |
MONROE 32266 Fits Vehicles
- GMC Yukon (1992-1997)
- Chevrolet Tahoe (1995-1999)
- Chevrolet Blazer (1992-1994)
