MONROE 32228 Part Description
Manufacturer
Product Description

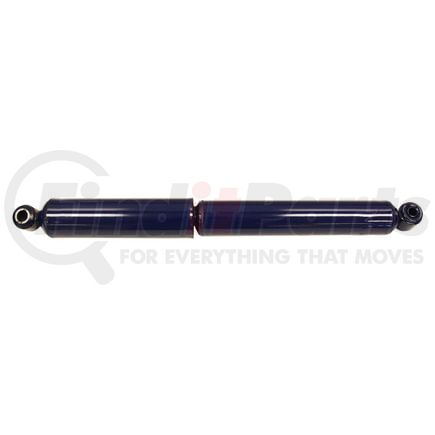

Monro-Matic Plus Suspension Shock Absorber
Features & Benefits
- CONSISTENT RIDE -- Velocity Proportional Valving (VPV) technology and all-weather fluid containing special additives to reduce friction and ensure smooth rod reaction and an overall smoother ride
- RELIABLE PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration
- RESTORES RIDE AND HANDLING -- Larger bore provides more efficient damping control to provide consistency and a smooth ride (where applicable)
- BUILT TO LAST -- Self-lubricating fluid seal retains gas and reduces excessive friction against the piston rod to help reduce premature wear while banded piston and bronze reinforced guide provide durability
- GET MORE MILES FROM YOUR RIDE -- Designed and validated to meet OE spec and deliver consistent performance
MONROE 32228 Specifications
Product Attributes
| Lower Mount Code | LS26 |
| Upper Mount Code | L1 |
| Dust Shield Included | Yes |
| Includes Bump Stop | No |
| Internal Rebound Bumper | No |
| Hydraulic Lockout | No |
| Part Description | Shock Absorber |
| Compressed Length | 12.875 IN |
| Dust Shield Material | Metal |
| Extended Length | 21.375 in |
| Gas Charged | Yes |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 12MM Sleeve ID X 1.1/2" Sleeve OAL |
| Parts Pack(s) | P570 |
| Travel Length | 8.5 in |
| Upper Mount Type | Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL |
| Compressed Length | 327 MM |
| Extended Length | 542.9 MM |
| Travel Length | 215.9 MM |
| Shock Absorber Rod End Measuring Point | Center of Loop |
| Shock Absorber Body End Measuring Point | Center of Loop |
Additional Information
| MSDS Sheet Number | 1164 |
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708801600 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598024886 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MONROE 32228 Part Interchanges
| Brand | Part Number |
|---|---|
| Ford | 5U2Z18V124Z, E3TZ18124N, E7TZ18124G, E7TZ18124L, E7TZ18124M, E7TZ18125N, E7TZ18125P, E7XZ18124B, E7XZ18124E, E7XZ18124F, E7XZ18125C, F2TZ18124P, F2TZ18125H, F2TZ18125L, F2TZ18125M, F2TZ18125N, F2TZ18125R, F3TZ18125C, F4TZ18124E, F4TZ18124F, F4TZ18124G, F4TZ18124J, F4TZ18124K, F4TZ18124M, F4TZ18125J, F4TZ18125K, F5TZ18125C, F7AZ18124UB, F7AZ18125VA, F7AZ18125ZA |
| Gabriel | 58409, 43142, G63409, 61554, 81710, 77409 |
| KYB | 344077, 1440003, KG5442, 565044, 344078, KG5441, 565081 |
| FCS Auto Parts | 342501, 342512 |
| AutoZone | TS33-32542B, TS3332542B |
| NAPA Response | 94076 |
| Gold Shock Absorber | 9150790 |
| FCS | 342501, 342512 |
| Sensen | 12140240 |
MONROE 32228 Fits Vehicles
- Ford F-150 (1980-1984)
- Ford F-100 (1980-1983)
- Ford F-Super Duty (1988-1997)
- Ford Bronco (1980-1996)
