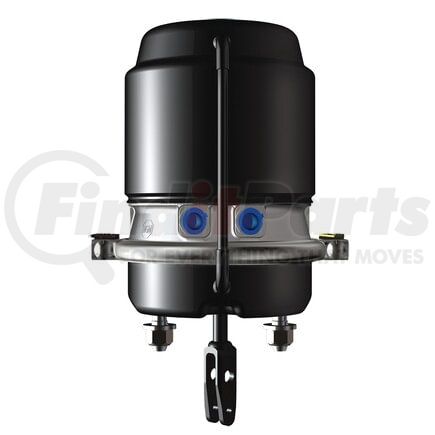

MGM Brakes MJS3030ET951 - Air Brake Chamber - Combination, 2.25" Welded Yoke
- Part Number
- MJS3030ET951
- Manufacturer
- MGM BRAKES
- Description
-
Air Brake Chamber - Combination, 2.25" Welded Yoke
details
$66799
MSRP: $987.46
Save: $319.47
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
MGM BRAKES part description
General Description
Dry Bulk Chemicals
Features and Benefits
- Tamper ResistantDesign
- Lighter Weight
- 3 Inch (76.2 mm) Long Stroke
- Compact Size
- Patented Integral Release Bolt Mechanism -Minimal Bolt Protrusion- Approx. 1.25 inch (31.8 mm) Protrusion On "Long Stroke" Models When Manually Released
- Lower Hold Off Pressure (Less Air Consumption)
- Epoxy Coated Return Spring
- Non-Coil Clash Power Spring
- Increased Corrosion Resistance -Steel Head, Epoxy Coated
- Available With 1,749 lb (793.3 kg) -2,450 lb (1,111.3 kg) of Push-Rod Braking Force @ 1.25 inch (31.8 mm) Stroke/Service Brake Sizes 17-36
- Center Hole Shield
Technical Specifications
| Stroke | 3.00" (76.2 mm) |
| Weight lb (kg) Combination | 23.10 lb (10.5 kg) |
| Weight lb (kg) Single | 14.92 lb (6.8 kg) |
| A | 10.73" (272.5 mm) |
| B | 8.43" (214.1 mm) |
| C | 8.32" (211.3 mm) |
| D | 7.50" (190.5 mm) |
| E | 4.75" (120.7 mm) |
| F | 5/8" - 11 UNC (M16 x 1.5 - 6g) |
| Inlets | 3/8" - 18 NPTF (M16 x 1.5 - 6H) |
| Y | 2.25" |
Product Description
Piston Brake Chamber
Features & Benefits
- Tamper Resistant
- Long Stroke
- Compact
- Integral Release Bolt
- Epoxy Coated Return Spring/Steel Head
- Non-Coil Clash Power Spring
- Available w/1,749-2,450 lb of Push-Rod Brake Force @ 1.25” Stroke/Service
- Available w/1,749-2,450 lb of Push-Rod Brake Force @ 1.25" Stroke/Service
- Center Hole Shield
Product Attributes
| Breather Tube | Breather Tube |
| Chamber Type | Piston Brake |
| Diaphragm Diameter | Rubber IN |
| Mounting Bolt Length | 1.540 IN |
| Mounting Bolt Thread | 5/8-11 |
| Port Size | 3/8-18 NPTF |
| Spring Size | 30 |
| Service Size | 30 |
| Stroke | 3.00 IN |
| Welded Yoke | Welded Yoke |
| UNIT | Aftermarket |
Additional Information
| Country of Origin (Primary) | US |
| 2 | |
| VMRS Code | 013004000 |
