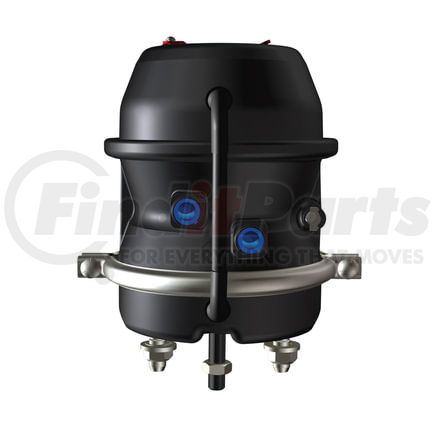

MGM Brakes 3545051 - Air Brake Chamber - Combination, with Welded NPC
- Part Number
- 3545051
- Manufacturer
- MGM BRAKES
- Description
-
Air Brake Chamber - Combination, with Welded NPC
details
$25699
15 day lead time
Pay over 3-12 months with
. Learn more
. Learn more
MGM BRAKES part description
General Description
Acids/Liquid Corrosives
Features and Benefits
- Tamper Resistant Design
- Center Hole Diaphragm (U.S Patent No. 5,507,217)
- Epoxy-Coated Head, Non-Pressure Chamber and Lower Push-Rod Assembly
- Epoxy Coated Return Spring
- Center Hole Shield
- Square Port Bosses (Long Stroke Identification)
- Weatherseal Plug
- Heavy-Duty 8-Gauge Steel Non-Pressure Chamber
- Polymer Push-Rod Guides
- Heavy-Duty Nylon Reinforced Diaphragms
- Heavy-Duty Nylon Reinforced Neoprene Diaphragms (Optional)
- Stroke Alert
- Externally Stored Release Bolt
- 3" (76.2 mm) Long Stroke
- Molded Nitrile Rubber Air Seal
- External Breather Tube
- Epoxy-Coated Piston & Center Case -Inside & Out
- Heavy Duty Power Spring 145 lb (65.8 kg) Additional Parking Brake Force @ 1.25 inches (31.8 mm) of Stroke
- Weld Reinforced Non-Pressure Housing with Welded Bolts
- Composite Guide -Corrosion Fighter Technology
Technical Specifications
| Stroke | 3.00" (76.2 mm) |
| Weight lb (kg) Combination | 20.4 lb (9.3 kg) |
| Weight lb (kg) Single | N/A |
| A | 9.99" (253.7 mm) |
| B | 7.61" (193.3 mm) |
| C | 8.32" (211.3 mm) |
| D | 8.21" (208.5 mm) |
| E | 4.75" (120.7 mm) |
| F | 5/8" - 11 UNC (M16 x 1.5 - 6g) |
| G | 5/8" - 18 UNF (M16 x 1.5 - 6g) |
| Inlets | 3/8" - 18 NPTF (M16 x 1.5 - 6H) |
| X - Min. (aftermarket unit only) | 8.00" (203.2 mm) |
Product Description
Double Diaphragm Brake Chamber
Features & Benefits
- Tamper Resistant
- Long Life Spring
- Center Hole Diaphragm/Shield
- Epoxy Coated Head, NPC, Lower Push-Rod Assembly, Return Spring, Piston/Center Case
- Heavy-Duty Steel NPC
- Polymer Guides
- Heavy-Duty Diaphragm
- Stroke Alert
- Composite Guide
Product Attributes
| Artic Assembly | Artic Assembly |
| Breather Tube | Breather Tube |
| Chamber Type | Double Diaphragm Brake |
| Diaphragm Diameter | Rubber IN |
| Heavy Duty | Heavy Duty |
| Mounting Bolt Length | 1.490 IN |
| Mounting Bolt Thread | 5/8-11 |
| Port Size | 3/8-18 NPTF |
| Spring Size | 30 |
| Service Size | 30 |
| Severe Service | Severe Service |
| Stroke | 3.00 IN |
| Welded Mounting Bolts | Welded Mounting Bolts |
| UNIT | Aftermarket |
Additional Information
| Country of Origin (Primary) | US |
| 21 | |
| VMRS Code | 013004000 |
