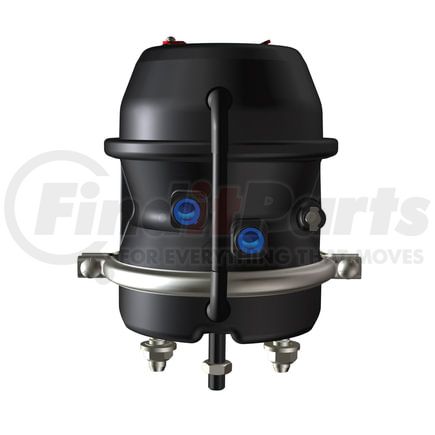

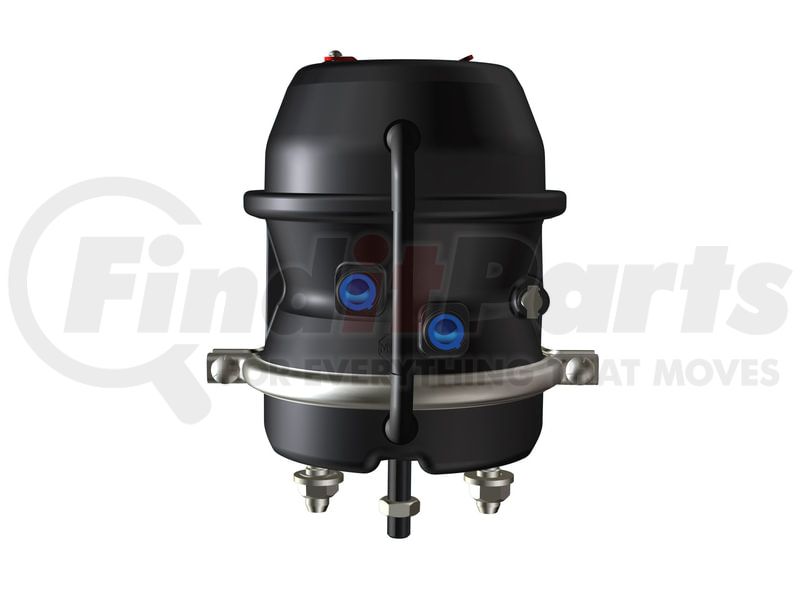

(888) 312-8812 Login SignupMGM BRAKES 3526051 Air Brake Chamber - 3526 Series, Combination, 2.50" Stroke, Model TR2430LTSHD
$24649
21 Day Lead Time
Due to limited availability, we will confirm your order and notify you within 1 business day.
MGM BRAKES 3526051 Part Description
Manufacturer
Product Description
Double Diaphragm Brake Chamber
Features & Benefits
- Tamper Resistant
- Long Life Spring
- Center Hole Diaphragm/Shield
- Epoxy Coated Head, NPC, Lower Push-Rod Assembly, Return Spring, Piston/Center Case
- Heavy-Duty Steel NPC
- Polymer Guides
- Heavy-Duty Diaphragm
- Stroke Alert
- Composite Guide
Combination
MGM BRAKES 3526051 Specifications
Product Attributes
| Artic Assembly | Artic Assembly |
| Breather Tube | Breather Tube |
| Chamber Type | Double Diaphragm Brake |
| Diaphragm Diameter | Rubber IN |
| Heavy Duty | Heavy Duty |
| Mounting Bolt Length | 1.550 IN |
| Mounting Bolt Thread | 5/8-11 |
| Port Size | 3/8-18 NPTF |
| Spring Size | 30 |
| Service Size | 24 |
| Severe Service | Severe Service |
| Stroke | 2.50 IN |
| UNIT | Aftermarket |
| Diaphragm | Rubber |
| Rod Diameter | 5/8 |
| Push Rod Length - no yoke | 8.00 |
Additional Information
| Country of Origin (Primary) | US |
| 21 | |
| VMRS Code | 013004000 |
MGM BRAKES 3526051 Cross References
| Brand | Part Number |
|---|---|
| HALDEX | GC2430L |
