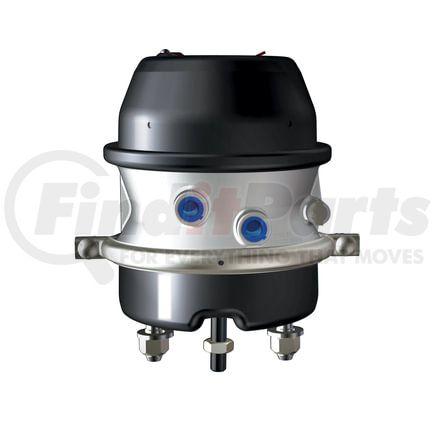

(888) 312-8812 Login SignupMGM BRAKES 3427851 Air Brake Chamber - Combination, with Neoprene Diaphragm
$20849
2 Day Lead Time
Due to limited availability, we will confirm your order and notify you within 1 business day.
MGM BRAKES 3427851 Part Description
Manufacturer
Product Description
Double Diaphragm Brake Chamber
Features & Benefits
- Tamper Resistant
- Externally Stored Release Bolt
- Epoxy-Coated Head
- 360 Aluminum Center Case
- Long Life Power Spring
- Weatherseal Plug
- Heavy-Duty Nylon Reinforced Diaphragm (Neoprene Optional)
- Breather Tube
- Composite Guide
Combination - W
MGM BRAKES 3427851 Specifications
Product Attributes
| Chamber Type | Double Diaphragm Brake |
| Diaphragm Diameter | Neoprene IN |
| Mounting Bolt Length | 1.570 IN |
| Mounting Bolt Thread | 5/8-11 |
| Port Size | 3/8-18 NPTF |
| Spring Size | 24 |
| Service Size | 24 |
| Stroke | 2.50 IN |
| UNIT | Aftermarket |
| Diaphragm | Neoprene |
| Rod Diameter | 5/8 |
| Push Rod Length - no yoke | 8.00 |
Additional Information
| Country of Origin (Primary) | US |
| 2 | |
| VMRS Code | 013004000 |
