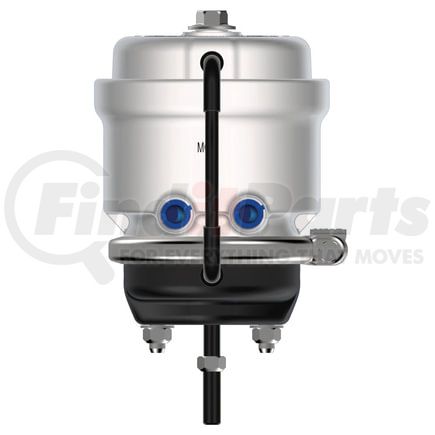

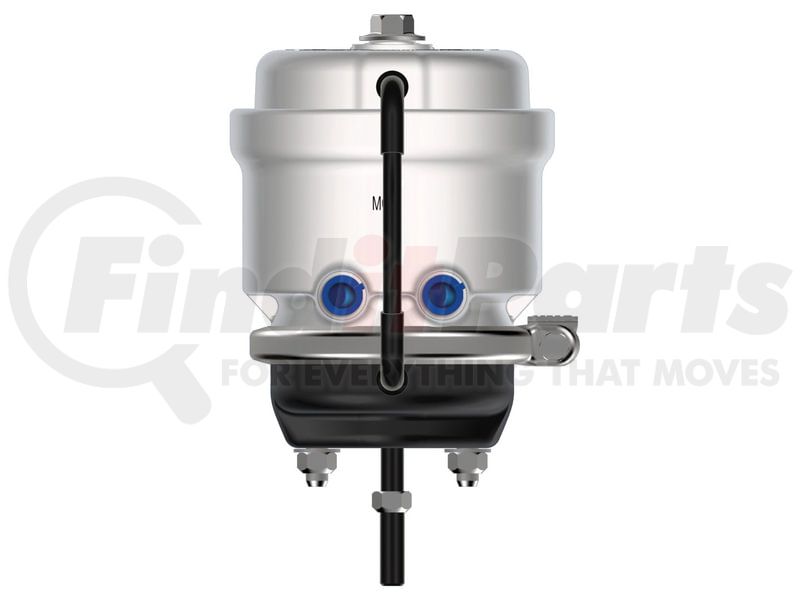

MGM Brakes MJS1216AT051 - Air Brake Chamber - MJS1216AT Series, Combination, 1.75" Stroke
- Part Number
- MJS1216AT051
- Manufacturer
- MGM BRAKES
- Description
-
Air Brake Chamber - MJS1216AT Series, Combination, 1.75" Stroke
details
$51849
2 day lead time
Pay over 3-12 months with
. Learn more
. Learn more
MGM BRAKES part description
Specifications
Aftermarket Unit
Mounting Bolt Thread: 7/16-14
Mounting Bolt Length (in.): 1.170
Port Size: 3/8-18 NPTF
Stroke (in.): 1.75
Service Size: 12
Spring Size: 16
Features & Benefits
- Lightweight, Rugged Aluminum Hosing and Head
- Epoxy-Coated power Spring
- External Breather Tube
- Integral Release Bolt
- Epoxy Coated Return Spring
- Polymer Push-Rod Guides
- Molded Nitrile Rubber Push-Rod Air Seal
- Low Friction Piston and Guide
- Heavy Duty Nylon Reinforced Diaphragms
Model: MJS1216AT
Technical Data
| Stroke | 1.75" (44.5 mm) |
| Weight lb (kg) Combination | 12.5 lb (5.7 kg) |
| Weight lb (kg) Single | 8.70 lb (3.9 kg) |
| A | 8.62" (218.9 mm) |
| B | 5.84" (148.3 mm) |
| C | 5.70" (144.8 mm) |
| D | 6.44" (163.6 mm) |
| E | 3.00" (76.2 mm) |
| F | 7/16" - 14 UNC |
| G | 1/2" - 20 UNF |
| Inlets | 3/8" - 18 NPTF |
| X - Min. (aftermarket unit only) | 8.00" (203.2 mm) |
Replacement Parts
| 1 | Kit _Chamber (a) | 9015242 |
| 2 | Kit -Nuts & Bolts | 9003002 |
| 3 | Clamp Band Assembly | 8216012 |
| 4 | Diaphragm | 8017312 |
| 5 | Kit -Push-Rod Assembly (a) SAE | 9064010 |
| 5a | Kit -Push-Rod Assembly (a) METRIC | 9064034 |
| 6 | Return Spring | 8068007 |
| 7 | NP Chamber Assembly (a) | 8215198 |
| 8 | Kit -Nuts & Washers SAE | 9002003 |
| 9 | Hex Nut -Yoke SAE | 8130011 |
| 9a | Hex Nut -Yoke METRIC | 8130016 |
| 10 | Kit -Breather Tube | 9081001 |
| 11 | Kit -Piggyback Plus SAE | MJS1216AT008 |
| *NOTE: | (a)To ensure correct stroke alert positioning, kits MUST only be used on the designated MGM brake units. |
Product Description
Piston Brake Chamber
Features & Benefits
- MJS 1.75" (44.5 mm)
- Lightweight, Rugged Aluminum Hosing and Head
- Epoxy-Coated power Spring
- External Breather Tube
- Integral Release Bolt
- Low Friction Piston and Guide
- Heavy Duty Nylon Reinforced Diaphragm
Product Attributes
| Breather Tube | Breather Tube |
| Chamber Type | Piston Brake |
| Diaphragm Diameter | Rubber IN |
| Mounting Bolt Length | 1.170 IN |
| Mounting Bolt Thread | 7/16-14 |
| Port Size | 3/8-18 NPTF |
| Spring Size | 16 |
| Service Size | 12 |
| Stroke | 1.75 IN |
| UNIT | Aftermarket |
Additional Information
| Country of Origin (Primary) | US |
| 2 | |
| VMRS Code | 013004000 |
MGM BRAKES MJS1216AT051 Cross Reference
We have 1 alternatives for the MJS1216AT051 by MGM BRAKES:
