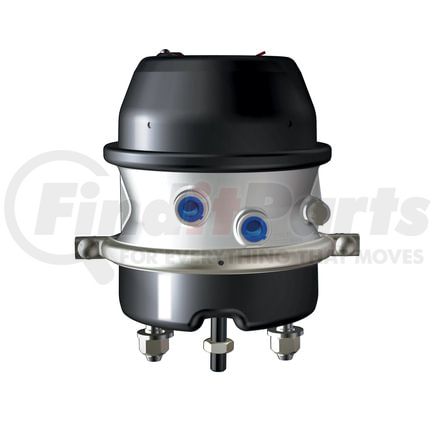

(888) 312-8812 Login SignupMGM BRAKES 3427049 Air Brake Chamber - Combination, Metric
$20499
21 Day Lead Time
Due to limited availability, we will confirm your order and notify you within 1 business day.
MGM BRAKES 3427049 Part Description
Manufacturer
Product Description
Double Diaphragm Brake Chamber
Features & Benefits
- Tamper Resistant
- Externally Stored Release Bolt
- Epoxy-Coated Head
- 360 Aluminum Center Case
- Long Life Power Spring
- Weatherseal Plug
- Heavy-Duty Nylon Reinforced Diaphragm (Neoprene Optional)
- Breather Tube
- Composite Guide
Combination - M
MGM BRAKES 3427049 Specifications
Product Attributes
| Chamber Type | Double Diaphragm Brake |
| Diaphragm Diameter | Rubber IN |
| Mounting Bolt Length | 1.520 IN |
| Mounting Bolt Thread | M16 x 1.5 |
| Port Size | M16 x 1.5 |
| Spring Size | 24 |
| Service Size | 24 |
| Stroke | 2.50 IN |
| UNIT | Aftermarket |
| Diaphragm | Rubber |
| Rod Diameter | M16 |
| Push Rod Length - no yoke | 8.00 |
Additional Information
| Country of Origin (Primary) | US |
| 21 | |
| VMRS Code | 013004000 |
