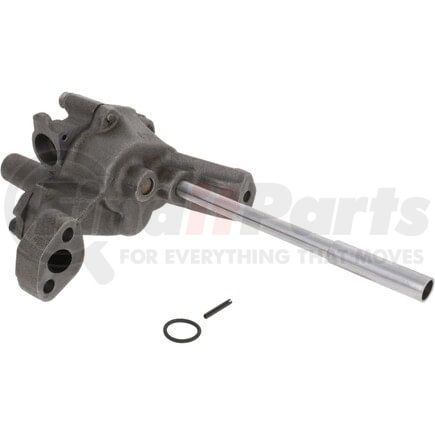

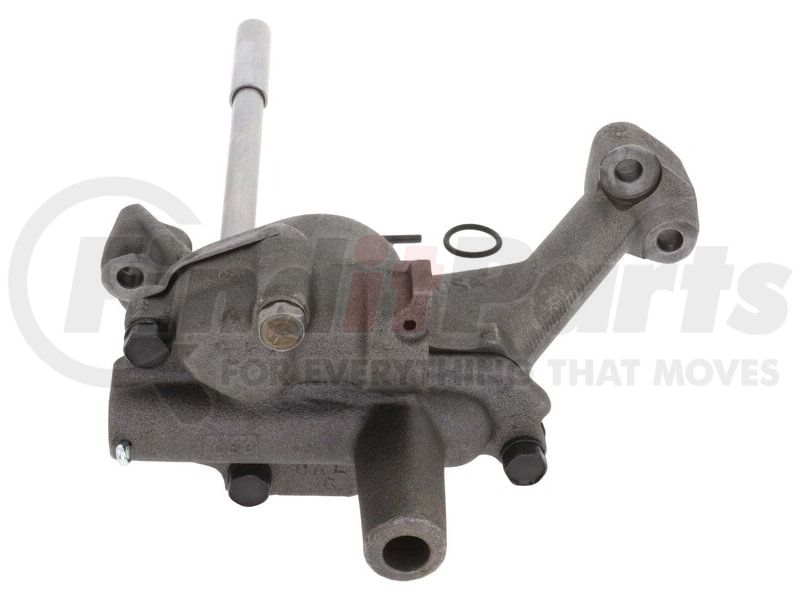

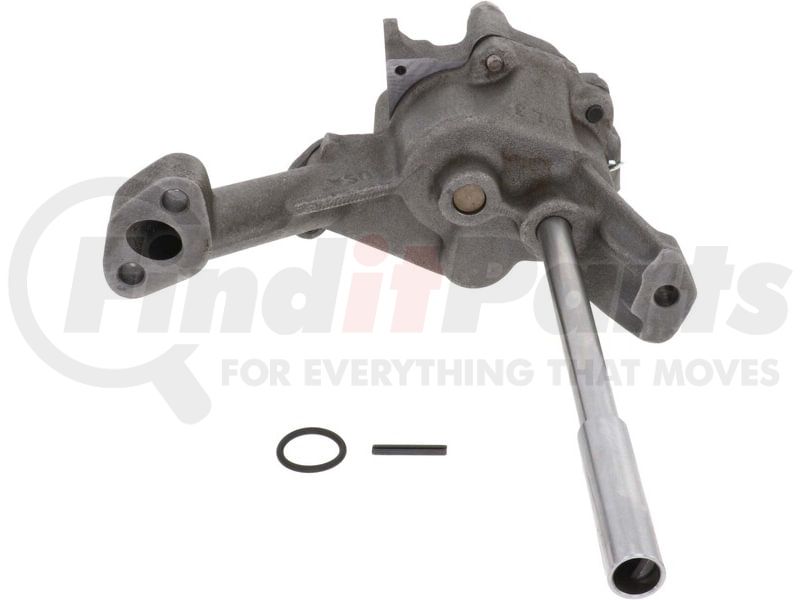

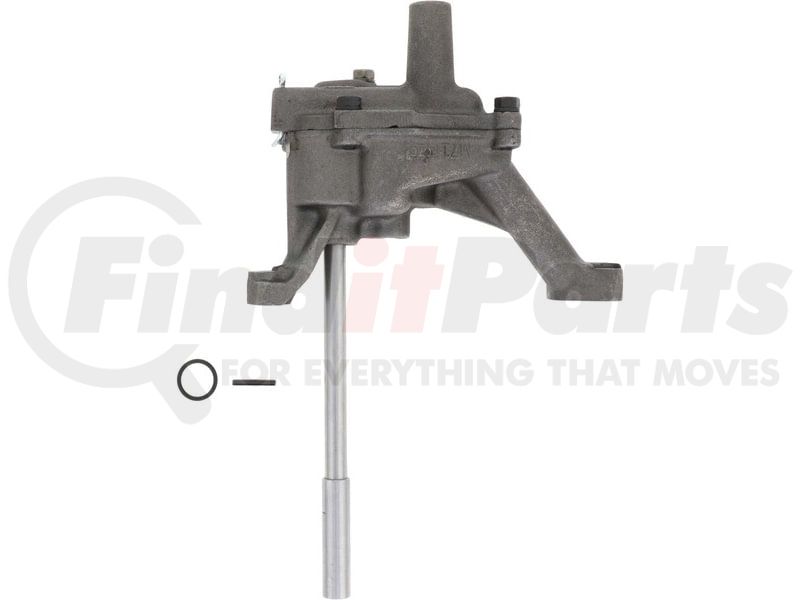

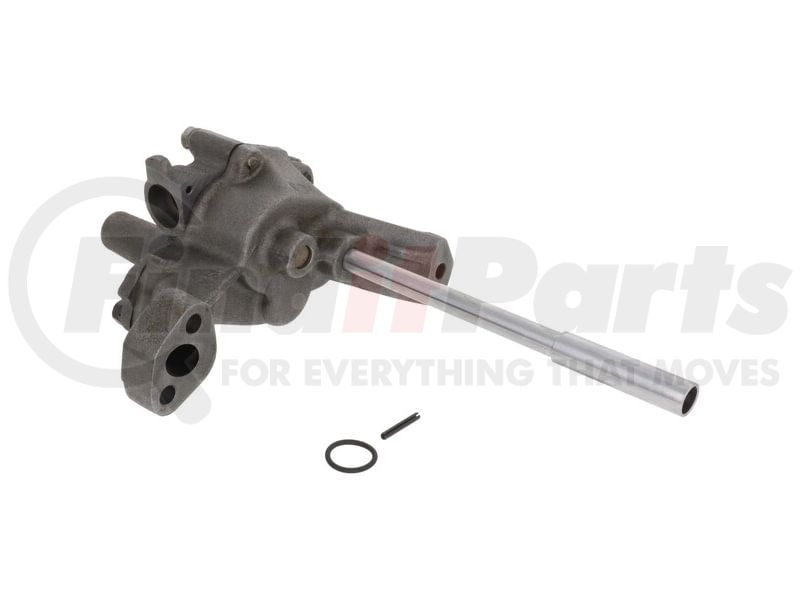

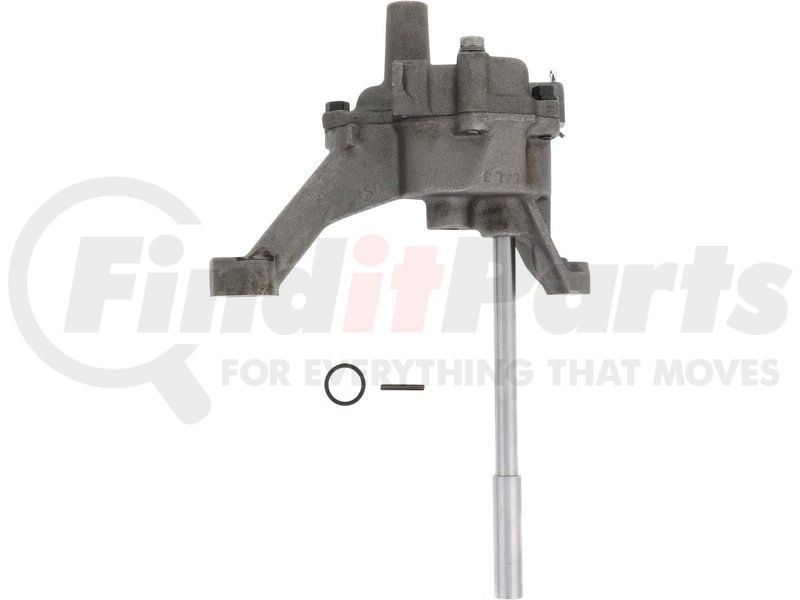

(888) 312-8812 Login SignupMELLING ENGINE PRODUCTS M71 M-71 Stock Replacement : Standard Volume, Standard Pressure, Cast Iron Oil Pump With Gasket
Tap to view 4 more
MSRP: $347.35
$31449
Save $32.86
Limited availability at this price!
In Stock
Get it by Friday, Sep 4
MELLING ENGINE PRODUCTS M71 Part Description
Manufacturer
Product Description
Stock Replacement Oil Pump
Features & Benefits
- Precision engineered for optimum fit and function
- Manufactured from high quality materials for consistent durable wear
- Designed for long-life and worry-free performance
- Meets or exceeds original equipment specifications
MELLING ENGINE PRODUCTS M71 Specifications
Product Attributes
| Title | Engine Oil Pump |
| Width | 7.75 IN |
| Width | 197.0 MM |
| Height | 12.75 IN |
| Height | 324.0 MM |
| Grade Type | Standard Replacement |
| Gasket Or Seal Included | Yes |
| Mounting Hole Quantity | 3 |
| Housing Material | Cast Iron |
| Drive Type | Drive Shaft |
| Oil Pump Type | Gear |
| Pickup Screen Diameter | 0.93 IN |
| Pickup Screen Diameter | 24.0 MM |
| Mounting Hole Diameter | 0.315 IN |
| Mounting Hole Diameter | 8.0 MM |
| Oil Pump Pressure Type | Standard Pressure |
| Oil Pump Volume Type | Standard Volume |
| Pickup Screen Included | No |
| Intermediate Shaft Included | Yes |
| Inlet Size (in) | 0.750 |
| Inlet Size (mm) | 19.00 |
| Cover Material | Cast Iron |
| Bolts Included | No |
| Bushing Included | No |
| Cotter Pin Included | No |
| Governor Spinner Included | No |
| Guide Included | No |
| Nylon Bushing Included | No |
| O-Ring Included | No |
| Pump Cover Included | Yes |
| Shaft Material | Steel |
| Timing Cover Included | No |
| Washers Included | No |
| Spacer Included | No |
| Gears Included | Yes |
| Finish | Rust Preventative |
| Gear Material | Steel |
| Pickup Tube Diameter | 0.750 IN |
| Pickup Tube Diameter | 19.00 MM |
| Adjustable Bypass Pressure | No |
| Alternate Pressure Springs Included | No |
| Drive Shaft Included | Yes |
Additional Information
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Harmonized Tariff Code (HTS) | 8413309060 |
| UPC | 00729295101086 |
MELLING ENGINE PRODUCTS M71 Cross References
| Brand | Part Number |
|---|---|
| Avon Automotive | A-71 |
| Badger | 41-187, 41-187U, B-71 |
| Balkamp | 601-1039 |
| Dynagear | DM-71 |
| Elgin | EM-71 |
| Enginetech | EP71, N/A |
| Federated | DM-71 |
| Fleet-Tuf | OP162 |
| Hoof | HM71 |
| ITM Engine Components | N/A |
| International Harvester (IHC) | 151075-R93, 466935-C91 |
| MAHLE | 601-1039 |
| MELLING ENGINE PRODUCTS | M71 |
| Melling | M-71 |
| Muskegon | MM-71 |
| N/A | N/A |
| Perfect Circle | 601-1039, P71 |
| Pioneer | OP-71 |
| SEALED POWER | 22441187 |
| Safety Auto Parts Corp | N/A |
| Sealed Power | 224-41187 |
| TRW | 50064 |
| Topline | N/A |
| Wolverine/Blue Racer | OP-538 |
MELLING ENGINE PRODUCTS M71 Fits Vehicles
- International 1500D (1969-1971)
- International 1500C (1968-1969)
- International 1500B (1967-1969)
- International 1500A (1966)
- International S1824 (1980, 1984)
- International S1823 (1980-1982)
- International S1724 (1980-1982, 1984)
- International S1723 (1980-1982, 1984-1985)
- International S1624 (1980-1982)
- International M700 (1965-1967)
- International D1300 (1965)
- International CM80 (1962-1965)
- International CM75 (1962-1965)
- International CM110 (1962-1965)
- International Cargostar (1980-1984)
- International 908B (1967)
- International 1300B (1967)
- International 1200B (1967)
- International 1100B (1967)
- International 1000B (1967)
- International 900A (1966-1967)
- International 1300A (1966)
- International 1200A (1966)
- International 1100A (1966)
- International 1000A (1966)
- International D900 (1965)
- International D1200 (1965)
- International D1100 (1965)
- International D1000 (1965)
- International C900 (1964)
- International C1300 (1963-1964)
- International C1200 (1963-1964)
- International C1100 (1963-1964)
- International C1000 (1963-1964)
- International C132 (1961-1962)
- International C130 (1961-1962)
- International C122 (1961-1962)
- International C120 (1961-1962)
- International C112 (1961-1962)
- International C110 (1961-1962)
- International C102 (1961-1962)
- International C100 (1961-1962)
- International B132 (1959-1960)
- International B130 (1959-1960)
- International B122 (1959-1960)
- International B120 (1959-1960)
- International B112 (1959-1960)
- International B110 (1959-1960)
- International B102 (1959-1960)
- International B100 (1959-1960)
- International Scout (1961-1971)
- International MS1210 (1972-1974)
- International MA1200 (1967-1971)
- International M800 Post Office (1969-1972)
- International M800 Navy (1969)
- International M800 (1965-1971)
- International M1400 (1965-1967, 1969)
- International M1200 (1965-1972)
- International M1100 (1965-1972)
- International 908C (1968-1969)
- International 1310 (1971-1973)
- International 1300D (1969-1970)
- International 1300C (1968)
- International 1210 (1971-1973)
- International 1200D (1969-1970)
- International 1200C (1968)
- International 1110 (1971-1973)
- International 1100D (1969-1970)
- International 1100C (1968)
- International 1010 (1971-1973)
- International 1000D (1969-1970)
- International 1000C (1968)
- International MS (1975)
