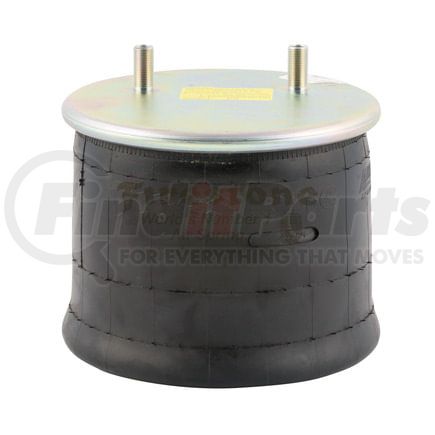

(888) 312-8812 Login SignupMERITOR FS8091 Air Suspension Spring, 10.10 in. Bead Plate Diameter Bottom, 11.31 in. Bead Plate Diameter Top
MSRP: $541.40
$24249
Save $298.91
Limited availability at this price!
In Stock
Get it by Wednesday, Aug 12
MERITOR FS8091 Part Description
Manufacturer
Product Description
Air Suspension Spring, Mta25T Only
Meritor Air Spring

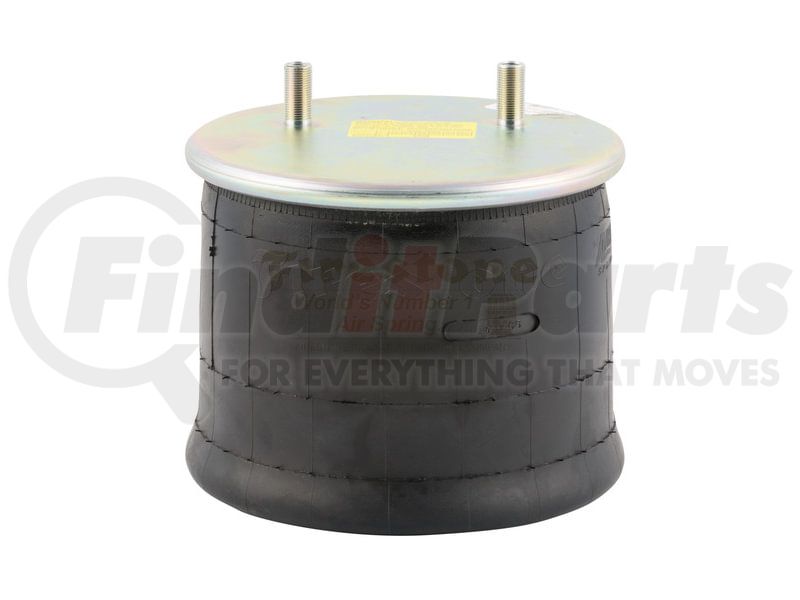

When the job involves an MTA25T suspension, the Meritor Air Spring keeps the repair centered on the air spring that carries the suspension’s pressure load. The reversible sleeve spring uses a 10.10-inch bottom bead plate, 11.31-inch top bead plate, 6.10-inch collapsed height, and 19.00-inch maximum height. Those dimensions matter because the spring has to sit correctly in the mounting stack while still leaving enough travel for normal suspension movement. During trailer suspension repair, the Meritor FS8091 restores the air spring position with the correct spring shape and travel range.
| Aftermarket Extended Warranty - General | 3 Years / 300K Miles |
| Application | Hendrickson Trailer S20901 (Intraux 250)-reuse metal disk; Hendrickson Trailer S21784 w/ metal disk for piston support |
| Bead Plate Diameter Bottom | 10.10 in. |
| Bead Plate Diameter Top | 11.31 in. |
| Collapsed Height | 6.10 in. |
| Convoluted Style | 1T Reversible Sleeve |
| Max. Height | 19.00 in. |
| Part Diameter | 10.62 in. |
| Piston Height | 4.74 in. |
| Stud Configuration-Bottom | 1 |
| Stud Configuration-Top | 2 |
| Stud Mount-Bottom Flat | Stud |
| Stud Mount-Top Flat | Stud |
| VMRS Code | 016-008-000 |
Meritor Air Suspension Spring
Meritor air suspension spring protects tractors and trailers from road shocks and keep your ride a comfortable one. This aftermarket air spring covers a wide range of OEM specifications at affordable prices.
Features & Benefits
- Lightweight, high-strength pistons with support washers provide exceptional strength and durability
- Made of premium-grade steel and aluminum with electrostatic coating for oxidation resistance
- Special chromium coating on bead plate protects against rust, corrosive chemicals, and harsh operating environments
- Controlled sleeve movement tracks ride height changes under trailer load
- Taller maximum height accommodates the movement expected from this setup
MERITOR FS8091 Specifications
Product Attributes
| Aftermarket Extended Warranty - General | 3 Years / 300K Miles |
| Application | Hendrickson Trailer S20901 (Intraux 250)-reuse metal disk; Hendrickson Trailer S21784 w/ metal disk for piston support |
| Bead Plate Diameter Bottom | 10.10 in. |
| Bead Plate Diameter Top | 11.31 in. |
| Brand | Meritor |
| Collapsed Height | 6.10 in. |
| Convoluted Style | 1T Reversible Sleeve |
| Max. Height | 19.00 in. |
| Pallet Quantity | 24 |
| Part Diameter | 10.62 in. |
| Piston Height | 4.74 in. |
| Product Category | Genuine OE Product |
| Stud Configuration-bottom | 01 |
| Stud Configuration-top | 02 |
| Stud Mount-bottom Flat | Stud |
| Stud Mount-top Flat | Stud |
| Weight | 17.85 |
| Air Spring Type | Reversible Sleeve |
| Max Height | 19.00 in. |
MERITOR FS8091 Cross References
| Brand | Part Number |
|---|---|
| Automann | 566CT64421, AB1DK28E8091 |
| CONTITECH | 11105A16P523 |
| Continental-ContiTech | 11105A16P523, 64421 |
| DAYTON PARTS BATCO | 1R14171, C23748, S20901 |
| FIRESTONE | W013588091, 8091 |
| Firestone Ride-Rite | 8091, W013588091 |
| GOODYEAR | 1R14171 |
| HENDRICKSON TURNER | S20901, S21784 |
| POWER10 PARTS | HT-S20901 |
| SIRCO BRAKE | AS8091 |
| WORLD AMERICAN | WA01-8091C |
