Gates G24230-2424X - Female Flat-Face Swivel (GlobalSpiral MAX Pressure)
$22349
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description
Female Flat-Face Swivel (GlobalSpiral MAX Pressure)
Features & Benefits
- Greater power and capacity from existing equipment by replacing 2 in., 5000 psi hose assemblies
- A flexible, easier-to-route hose assembly to replace 2 in. rigid pipe on crowded equipment platforms
- A stem machined from a single piece of solid steel for greater strength and integrity
- A no-skive design requiring no special equipment and skills, reducing the risk of blow-offs or leaks
Product Attributes
| Coupling Description | GlobalSpiral MAX Pressure Female Flat-Face Swivel |
| Industrial Description | 24GSM4K-24FFORX XBULK |
| Thread Size | 2-12 |
| Inside Diameter | 1.5 IN |
| Hydraulic Hose Recommendation | Gates Extremely High Pressure Hose - EFG6K - SAE 100R15, EFG5K - SAE 100R13 |

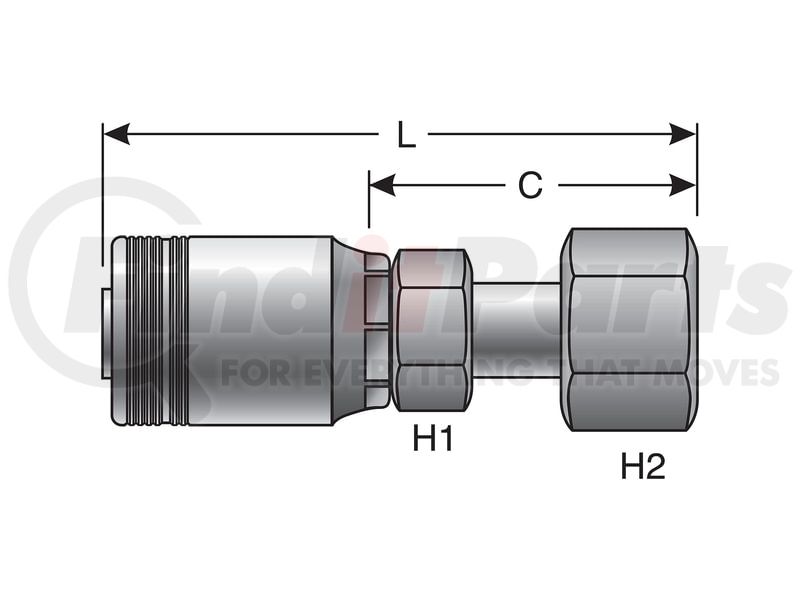

| Stem Hex Size | 2.17 IN |
| Nut Hex Size | 2.36 IN |
| Cut-Off Length | 2.73 IN |
| Length | 6.47 IN |
| Inside Diameter | 38.1 MM |
| Cut-Off Length | 69.4 MM |
| Length | 164.3 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Country of Origin (Primary) | US |
| UPC | 00770075376392 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
