(888) 312-8812 Login SignupGATES G25128-0608 Male O-Ring Boss Swivel - 90 Bent Tube (MegaCrimp)
Tap to view 3 more
$5449
Limited availability at this price!
In Stock
Get it by Thursday, Dec 18
GATES G25128-0608 Part Description
Manufacturer
Product Description

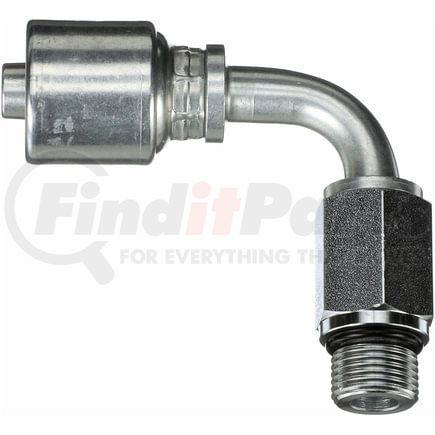

Male O-Ring Boss Swivel - 90 Bent Tube (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1,000,000 impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE Standard
GATES G25128-0608 Specifications
Product Attributes
| Coupling Description | MegaCrimp Male O-Ring Boss Swivel - 90 Bent Tube |
| Industrial Description | 6G-8MBX90 |
| Thread Size | 3/4-16 |
| Inside Diameter | .375 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Nut Hex Size | 1 IN |
| Drop Length | 2.48 IN |
| Cut-Off Length | 1.37 IN |
| Length | 2.47 IN |
| Seal Type | O-Ring |
| O-Ring Location | Outside O-Ring Boss |
| Gender | Male |
| Bent Tube Angle | 90 |
| Swivel | Yes |
| Inside Diameter | 9.5 MM |
| Drop Length | 63.1 MM |
| Cut-Off Length | 34.8 MM |
| Length | 62.8 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| Country of Origin (Primary) | US |
| UPC | 00770075470243 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G25128-0608 Part Interchanges
| Brand | Part Number |
|---|---|
| NAPA | G25128-0608 |
