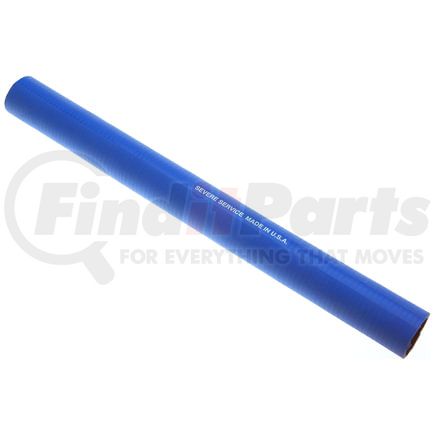

Gates 28231 - Severe Service Straight Silicone Coolant Hose
$20449
MSRP: $226.73
Save: $22.24
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description
Severe Service Straight Silicone Coolant Hose
Application Summary
2015 Peterbilt, 389, Cummins ISX15 Diesel, Lower - Pipe To Eng.
Features & Benefits
- Used when hose routing passes near exhaust, turbo or hot side of the charge air system
- Easily identified with blue cover
- Reinforced with four plies of aramid fabric
- SAE 20R1 Class A, standard wall
- Temperature Range: -65 Deg. F to +347 Deg. F (-55 Deg. C to +175 Deg. C) continuous; up to +500 Deg. F (+260 Deg. C) intermittent
- Note: For a maintenance free connection, use PowerGrip SB clamps
Product Attributes
| Centerline Length | 3 FT |
| End 1 Inside Diameter | 2.5 in |
| End 2 Inside Diameter | 2.5 in |
| Construction | Premium 4-Ply Polyester-Reinforced |
| Working Temperature Range | -65 Deg. F to +500 Deg. F (-54 Deg. C to +260 Deg. C) |
| Material | Silicone |
| Molded | No |
| Centerline Length | .91 LM |
| Centerline Length | 36 IN |
| Centerline Length | 914 MM |
| End 1 Inside Diameter | 64 MM |
| End 2 Inside Diameter | 64 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 4009310000 |
| UPC | 00770075461319 |
| VMRS Code | 042004050 |
| UNSPSC | 40142000 |
Part Interchanges
Fits Vehicles
- Peterbilt 388 (2014)
- Peterbilt 567 (2015)
- Peterbilt 389 (2015)
