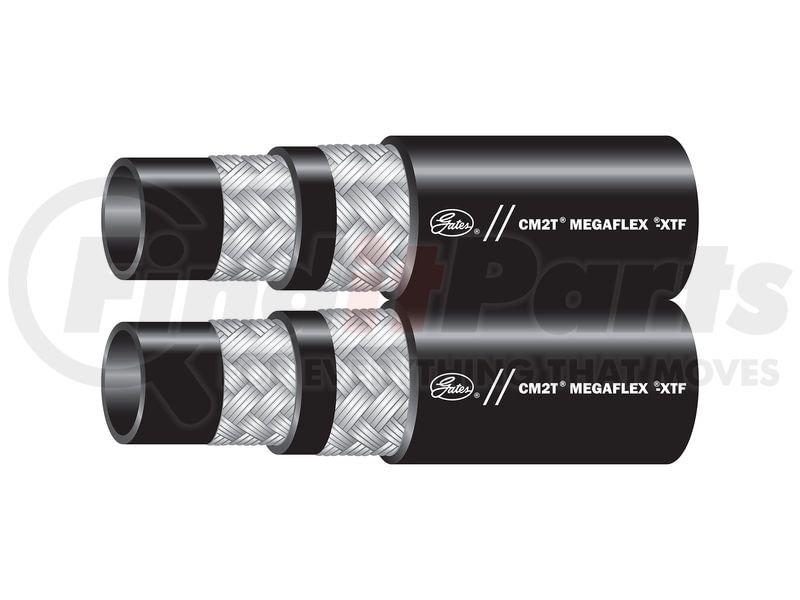

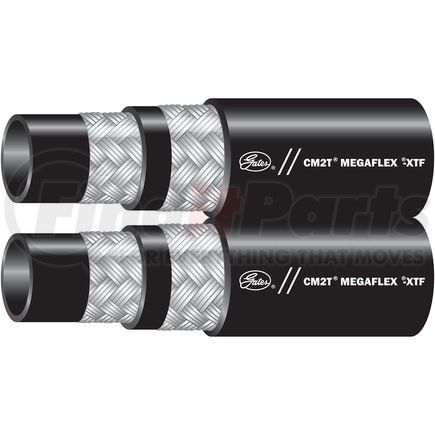

Name: Gates 71152 CM2TDL MegaFlex Connected Twin-Line 2-Wire Braid Hose-SAE 100R16-XtraTuff Cover
SKU: 71152
Price: 30.99 USD
Availability: InStock

GATES part description

Product Description

CM2TDL MegaFlex Connected Twin-Line 2-Wire Braid Hose-SAE 100R16-XtraTuff Cover

Features & Benefits

For use with GlobalSpiral Couplings [G20 Series] and MegaCrimp Couplings [G25 Series]
No need to use clamps as the two lines are vulcanized together to form one single unit
Provides bend radius up to 1/3 of the SAE specification and greater flexibility for easier routing
Tested to industry-leading 600,000 impulse cycles
XtraTuff hose lasts up to 25 times longer than standard hose
Meets Flame Resistance Acceptance Designation MSHA 2G
Temperature Range: -40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C)

Product Attributes

Product Type	CM2TDL MegaFlex Connected Twin-Line 2-Wire Braid Hose - SAE 100R16 - XtraTuff Cover
Industrial Description	8CM2TDL-XTFXCTN
Type	Hydraulic Hose
Hose Pressure Description	High Pressure
Maximum Working Pressure	4000 PS
Burst Pressure	16000 PS
Temperature Rating	-40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C)
Length	180 FT
9941	8
Inside Diameter	.5 IN
Outside Diameter	.82 IN
9879	5 IN
Tube Description	Black, Oil-Resistant, Synthetic Rubber
Hose Material	Nitrile - Type C
Reinforcement Material	Two Braids, High-Tensile Steel Wire
Cover Material	Synthetic Rubber - Modified Nitrile - Type C2 - Color Coded Layline
Cover Type	Type C2 - Flame, Oil, Abrasion & Weather Resistant
Cover Color	Black
9856	GlobalSpiral, MegaCrimp
9453	100R16
9954	857 2SC
9953	1436
