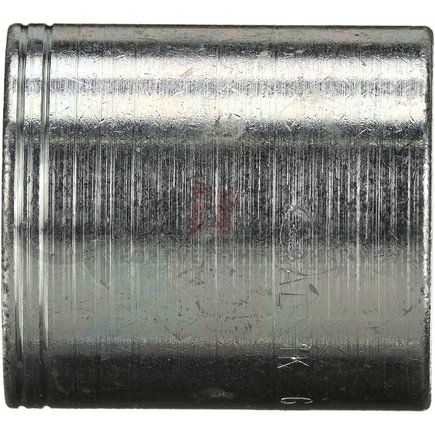

Gates G20995-0210 - GS Ferrule for Wire Braid Hose (GlobalSpiral)
$1349
MSRP: $16.11
Save: $2.62
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description
GS Ferrule for Wire Braid Hose (GlobalSpiral)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250degF temperature capability for longer assembly life
- +250°F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
Product Attributes
| Coupling Description | GlobalSpiral GS Ferrule for Wire Braid Hose |
| Industrial Description | 10GS1F-2 |
| Inside Diameter | .625 IN |
| Hydraulic Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Length | 1.4 IN |
| Outside Diameter | 1.33 IN |
| Inside Diameter | 15.9 MM |
| Length | 35.56 MM |
| Outside Diameter | 33.8 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| Country of Origin (Primary) | US |
| UPC | 00770075438519 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
Part Interchanges
