HALDEX part description

Product Description

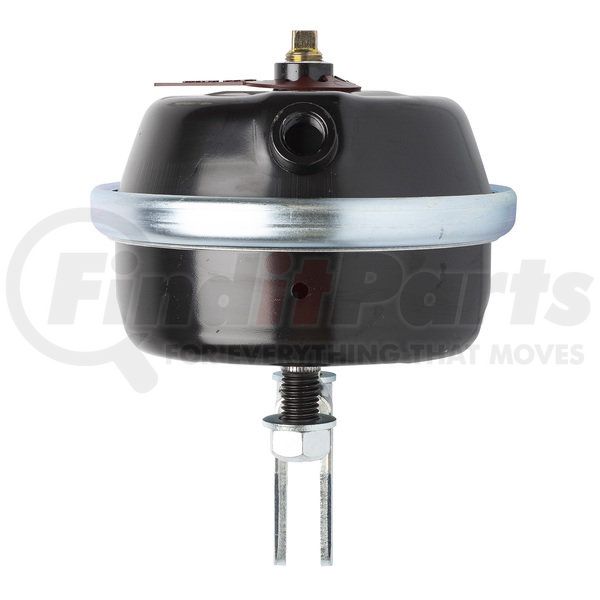

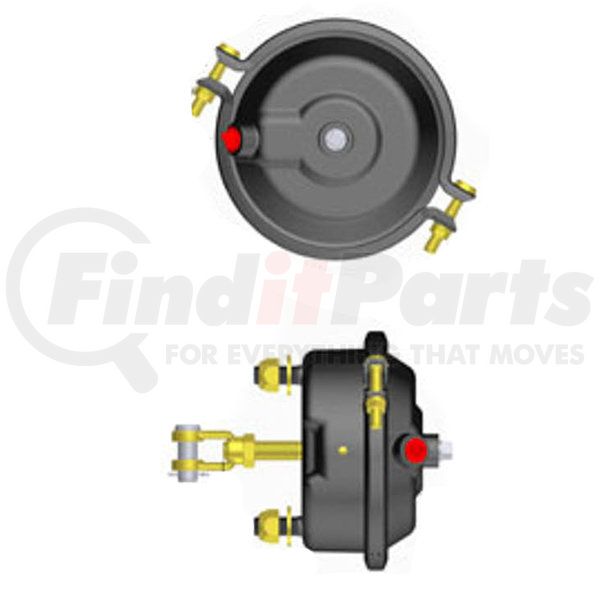

Service Chamber with Welded Clevis - Extra Long Stroke - Size T24

Application Summary

Service Chamber with Welded Extra Long Stroke - Size T24

Features & Benefits

  • Has powder-coated steel pressure housing with resistance welded air ports for long-term durability
  • World-class diaphragm that’s made of high-quality rubber compound for superior flexibility and heat- and cold-resistance
  • With sturdy powder-coated service housing that can withstand corrosion
  • Orange Alert® Stroke Indicator effectively informs the user if brake maintenance is required
  • Self-piloting dust shield extends air brake system lifespan

Haldex Air Brake Chamber

Keep the air brake system on your medium and heavy duty trucks, trailers, and off-highway vehicles working at its peak performance with a high-quality Haldex air brake chamber. This T24 service chamber is specially designed to resist extreme temperatures and can fit most drum brake applications.

Product Attributes

Diaphragm Type Single
Ram Stroke 3 in.
Air Port Thread Diameter 3/8-18 NPTF
Air Port Position
Bracket to End of Spring Housing Length 4.3 in.
Clevis Pin Length 2.25 in.
Freight Class 70
Maximum Pressure 150 PSI
Push Rod Length 1 in.
Service Clampband Size 7.5 in.
Stud Distance 4.75 in.

Additional Information

Country of Origin (Primary) MX
Harmonized Tariff Code (Schedule B) 8412310080
Harmonized Tariff Code (HTS) 8412310080
Remanufactured Part N
Warranty Distance 100000
Warranty Distance UOM MI
Warranty Special See Haldex Aftermarket Product warranty Policy (L20221W).pdf
Warranty Time 12
Warranty Time UOM MO
UPC 00767653331034
VMRS Code 013010034

Part Interchanges

Haldex® is a Sweden-based manufacturer specializing in brake and air suspension systems for heavy duty vehicles. Its product line consists of brake components for wheel ends, including disc brakes, brake adjusters, and actuators. It also offers air control products such as compressed air dryers, valves, ABS, and EBS. All these Haldex products are designed with safety and efficient operation in mind, cutting down on potential hazards and maintenance costs in the long run. Today, Haldex runs manufacturing and R&D facilities in 19 countries across four continents. It is dedicated to producing high-quality brake and suspension parts for its customers all around the world as well as developing new technologies for the future.
