(888) 312-8812 Login SignupHALDEX KN32005 Quick Release Valve
Tap to view 1 more
$2949
Limited availability at this price!
In Stock
Get as soon as Wednesday, Nov 4

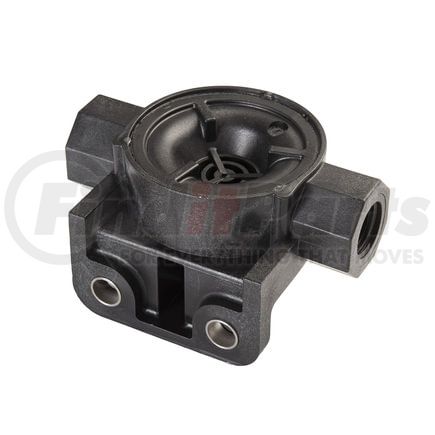

HALDEX KN32005 Part Description
Manufacturer
Product Description
Quick Release Valve
Features & Benefits
- Connection pattern distinguishes this valve from similar-looking air-system versions during like-for-like service
- Exhausts brake air near the chamber through the quick-release function
- Valve body keeps inlet and delivery connections in the quick-release service layout
- Vents service air through the outlet arrangement used by this valve

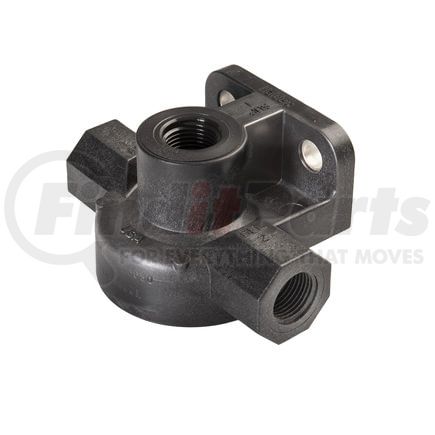

Haldex Quick Release Valve
Vent release air near the brake chamber with Haldex Quick Release Valve instead of routing it back through a longer control line. That local exhaust action helps the chamber release promptly when the brake signal is removed and distinguishes this valve from relay and protection valves. The Haldex KN32005 provides quick-release control for the covered pneumatic setup. You can confirm the quick-release function first, then match the port arrangement and connections to the valve already installed on the vehicle.
HALDEX KN32005 Specifications
Product Attributes
| Crack Pressure | 0 |
Additional Information
| Core Group | - |
| Warranty Distance | 100000 |
| Warranty Distance UOM | DH |
| UPC | 00767653011110 |
| VMRS Code | 013010008 |
HALDEX KN32005 Cross References
| Brand | Part Number |
|---|---|
| 065067, 5000687, 65067, 15534992, AV229859, 013-010-008 | |
| AG Chem | 516549 |
| AGCO | 516549, AG516549 |
| AGCO Allis | 516549, AG516549 |
| AM General | 12378839 |
| BERG | 12310 |
| Bendix | 065067, 065070, 065212, 065350, 102344, 104000, 104284, 104702, 107617, 109996, 20500, 205000, 20500X, 221992, 223855, 224417, 229813, 229859, 277976, 280707, 280765, 281024, 282411, 282782, 282872, 283413, 283930, 283941, 284922, 285531, 286677, 288251, 289042, 289525, 5000687, 65067, 65212, 65350, 800064, 802743, 802744, K049777 |
| Benlee | AS015 |
| Bepco | 205000, 221992 |
| Berg Manufacturing | 12310 |
| Blue Bird | 1160464, 1940865 |
| CMI | MP5-3026 |
| DANA | P-67596 |
| DI-PRO | 30040 |
| Dana Commercial Vehicle Service Parts | P-67596 |
| Di-Pro Inc. | 30040 |
| Dorsey Trailer | 11900038 |
| Euclid | 4081205, E-BN229813X, E-BN229859X, E-BN281024X, E-BN288251X, E-MDKN32000X, E-BN229813N, E-BN229859N |
| Fontaine | 55710078 |
| Ford | D0HA2A095A, D0HZ2A095A, D0HZ2A095B, DOHA2A095A, E0HA2A095C, E6HZ2A095A |
| Freightliner | MIDN20959EB |
| GMC | 10638317, 15519352, 15519353, 15534992, 15662895, 2014357, 2014358, 610121, 9234285 |
| Genuine Newstar | S-4922 |
| HALDEX | KN32005 |
| HME Incorporated | 76330-3 |
| Haldex | N20959MB |
| Heil | 31-2265 |
| Hyundai | 10003218 |
| Lodal | 9961056 |
| MERITOR | R955229813N |
| Mack | 205000, 20QE291, 221992, 223855, 224417, 5396-KN32005 |
| Meritor | 9738990030, 9738990060, RKN32005, RN20959EB, RN20959EC, R955229859N, TDAR955229813 |
| Midland | 229813X, KN32000, KN32005, N12916CA, N12916CB, N12916CC, N20959B, N20959EB, N20959EC, N20959MB, N50009, VN20959B, ZZKN32005 |
| Midwest | WA229813, WA229859 |
| N/A | 4081205, N20959MB, 229813X, 205000, 2000, 0832-MM5-002, 032018, 065067, 9738990030, 55710078, EM-36570, 12378839, 516549, 12310, MP5-3026, P-67596, 11900038, 10638317, D0HA2A095A, 10003218, 72901-0016, 17-7-272, A-1129, 31-2265, 1676706C1, 53100577, 725162, 041219-462, MIDN20959EB, 1007, 641014, AS015, 30040, 3006407, 9961056, 1231644B000, S-4922, 04 60073 000 00, 51100, 72901-0003, WM314, WA229813, 12900081, 229813N, 12-800, RB-229859, AV229859, 401143 |
| NAPA | 229813N, 67596 |
| Navistar | 1676706C1, 2003719C91, 3628539C91, 471880C91, 473794C91, BX065067, ZZKN32005, BX229859X, ZAC229813 |
| OTR | AV229859 |
| Ottawa | 53100577, 90004755, 90019928 |
| PAI | EM-36570 |
| Paccar Parts | 725162, 801279, 81279, 9334182 |
| Phillips | 12-800 |
| Prevost | 641014 |
| Prior | 205000, 224417, 229813 |
| RANGER BRAKE | RB-229859 |
| RIDEWELL | 1231644B000 |
| RYDER FLEET PROD. | 3006407, U55 KN32005 |
| Ridewell Corp | 1231644B000 |
| Ryder | 3006407, U55 KN32005 |
| S&S Truck Parts | S-4922, 229813, 229859, BER-229813, BER-229859, BER-802743, BER-802744, TKL802743, TKL802744 |
| Sealco | 2000, 200000, 200001, 7800, 780210 |
| Spartan | 0832-MM5-002, 229859 |
| Spicer | P-67596 |
| Stoughton Trailers | 04 60073 000 00 |
| TECTRAN | 14023 |
| Tectran | 1007 |
| Terex | 041219-462 |
| Trailmobile | 17-7-272 |
| Tramec | 51100, 51103 |
| Tramec Sloan | 401143 |
| Turner | A-1129 |
| Velvac | 032018 |
| Volvo | 72901-0016, 72901-0003, G15535367 |
| Volvo GM Heavy Truck | 72901-0003, 72901-0016, G15535367 |
| WABCO | RKN32005, S9735000030 |
| WORLD AMERICAN | WA229859 |
| Wabash National | 12900081, 12900293, A-CE8011-1 |
| Williams Controls | WM314, WM314B |
| World American | WA229813 |
