Haldex KN28510 - RG2 Air Brake Relay Valve - 2-Port, 3/8" Delivery Port, 1/4" Control Port
$7699
MSRP: $166.03
Save: $89.04
In stock
limited availability at this price!
Pay over 3-12 months with . Learn more
HALDEX part description
Product Description

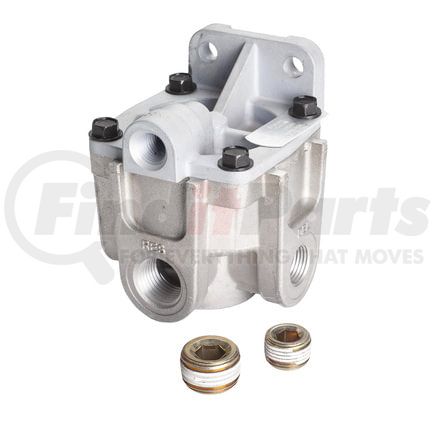

RG2 Relay Valve
Features & Benefits
- Designed as a fast relay that can be used to apply and release service brakes on tractor or trailer
- Compact in size for easier installation
- Product’s cover may be rotated without affecting the warranty or performance
- Weighs approximately 1.5 lbs. and has two mounting holes
Haldex Air Brake Relay Valve
Get improved air brake system performance with the Haldex air brake relay valve. Manufactured by a brand with more than 100 years of engineering expertise, this 2-port, RG2 ABS relay valve is designed to provide supreme levels of quality, performance, and reliability.
Product Attributes
Control Port Diameter | 1/4 in. |
Delivery Port Diameter | 2 @ 3/8 in. |
Freight Class | 70 |
Height | 0.63 in. |
Length | 3.5 in. |
Mounting Hole Diameter | 2 @ 0.34 in. on 1.5 in. Centers |
Opening Pressure | 5.6 ± 1.0 PSI |
Plugs Included | 1 @ .5 in., 1 @ .375 in. |
Port Position | 90° |
Supply Port Diameter | 2 @ 1/2 in. |
Width | 3.50 in. |
Additional Information
Country of Origin (Primary) | MX |
Harmonized Tariff Code (Schedule B) | 8481200070 |
Harmonized Tariff Code (HTS) | 8481200070 |
Remanufactured Part | N |
Warranty Distance | 100000 |
Warranty Distance UOM | MI |
Warranty Special | 36 MO, 350,000 MI=Haldex Air Brake Valves(1), Automatic Drain Valves (410-10XXX Series)(1). 12 MO, 100,000 MI= Automatic Drain Valves (N20878/ N20879 Series), Height Control Valve, Scale-O-Matic and AC Boxes. See L20221W.pdf for warranty details |
Warranty Time | 12 |
Warranty Time UOM | MO |
UPC | 00767653010779 |
VMRS Code | 013010009 |
Part Interchanges
- AE78882
- 110197N
- A78889
- 110155
- 9732980160
- EM-36120
- P-67049
- PS12014301
- ZZKN28510X
- 4194307081
- 14035
- 021-02261
- 30068
- U55 KN28510X
- S-6086
- 712800020
- PPA-046
- 3081425
- WAKN28510
- 67049
- 932028
- RB-28510
- AV28510
- 401202
- Euclid AE78882
- Midland 110197N
- Prior A78889
- Sealco 110155
- Meritor 9732980160
- PAI EM-36120
- Dana Commercial Vehicle Service Parts P-67049
- Dorsey Trailer PS12014301
- Navistar ZZKN28510X
- Freightliner 4194307081
- Tectran 14035
- Timpte 021-02261
- Di-Pro Inc. 30068
- Ryder U55 KN28510X
- S&S Truck Parts S-6086
- Trail King Industries 712800020
- Transcraft PPA-046
- Volvo GM Heavy Truck 3081425
- World American WAKN28510
- NAPA 67049
- Wagner 932028
- RANGER BRAKE RB-28510
- OTR AV28510
- Tramec Sloan 401202
- EUCLID AE78882
- Euclid AE78889
- Euclid AE86313
- Euclid AE86318
- Euclid E-MDKN28510X
- Euclid E-SL110197X
- MIDLAND 110197N
- Midland 110197RX
- Midland 110197X
- Midland A78889X
- Midland AE78889
- Midland AE86313
- Midland KN28510
- Midland KN28510N
- Midland KN28510RX
- Midland KN28510X
- Midland KSV4040846
- Midland N30108AC
- Midland N30108AK
- Midland N30108BG
- Midland N30108BJ
- Midland N30108BL
- Midland N30108BM
- Midland N30108BP
- Midland PAN30108BK
- Midland VN30108AC
- Midland VN30108BL
- PRIOR A78889
- SEALCO 110155
- Sealco 110197
- Sealco 110198
- Sealco 110199
- Sealco 110228
- Sealco 110275
- Sealco 9125
- MERITOR 9732980160
- Meritor RKN28510
- Meritor VN30108BL
- PAI LRV-3612
- DANA P-67049
- NAVISTAR ZZKN28510X
- FREIGHTLINER 4194307081
- TIMPTE 021-02261
- DI-PRO 30068
- RYDER FLEET PROD. U55 KN28510X
- TRANSCRAFT PPA-046
- Volvo GM Heavy Truck 72201-0013
- Volvo GM Heavy Truck 72201-0035
- WORLD AMERICAN WAKN28510
- NAPA KN28510N
- WAGNER 932028
- Wagner A78882
- Wagner A78889
- Wagner A86319
- Wagner AE78882-001
- Wagner AE78889
- Wagner AE78889-001
- Wagner AE86318
- Wagner AE86319
- EUCLID AE78889
- EUCLID AE86313
- EUCLID AE86318
- EUCLID E-MDKN28510X
- EUCLID E-SL110197X
- MIDLAND 110197RX
- MIDLAND 110197X
- MIDLAND A78889X
- MIDLAND AE78889
- MIDLAND AE86313
- MIDLAND KN28510
- MIDLAND KN28510N
- MIDLAND KN28510RX
- MIDLAND KN28510X
- MIDLAND KSV4040846
- MIDLAND N30108AC
- MIDLAND N30108AK
- MIDLAND N30108BG
- MIDLAND N30108BJ
- MIDLAND N30108BL
- MIDLAND N30108BM
- MIDLAND N30108BP
- MIDLAND PAN30108BK
- MIDLAND VN30108AC
- MIDLAND VN30108BL
- SEALCO 110197
- SEALCO 110198
- SEALCO 110199
- SEALCO 110228
- SEALCO 110275
- SEALCO 9125
- MERITOR RKN28510
- MERITOR VN30108BL
- WAGNER A78882
- WAGNER A78889
- WAGNER A86319
- WAGNER AE78882-001
- WAGNER AE78889
- WAGNER AE78889-001
- WAGNER AE86318
- WAGNER AE86319
HALDEX KN28510 Cross Reference
We have 18 alternatives for the KN28510 by HALDEX:
