HALDEX part description

Product Description

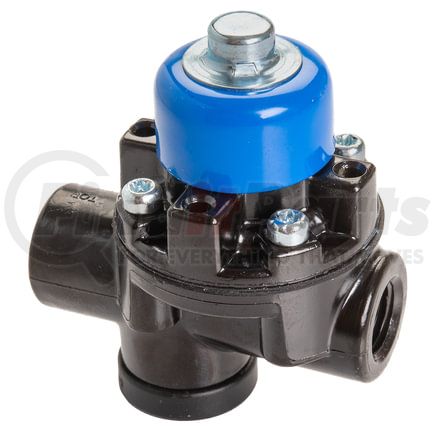

Pressure Protection Valve - Premium

Features & Benefits

  • Protects the air brake system in case of a leak in the air suspension system
  • Engineered following strict OE specifications to ensure product safety and performance
  • Separates the auxiliary air system from the brake system
  • With a serviceable filter that keeps contaminants and debris from reaching other air system accessories

Haldex Pressure Protection Valve

The Haldex pressure protection valve is designed to effectively preserve air for braking when your truck’s auxiliary system suffers a major leak. This premium valve helps reduce downtime and lower fleet maintenance cost.

Product Attributes

Inlet Port Inside Diameter 1/4 in.
Closing Pressure 70 PSI
Freight Class 70
Opening Pressure 75 PSI

Additional Information

Country of Origin (Primary) MX
Harmonized Tariff Code (Schedule B) 8481200070
Harmonized Tariff Code (HTS) 8481200070
Remanufactured Part N
Warranty Distance 100000
Warranty Distance UOM MI
Warranty Special 36 MO, 350,000 MI=Haldex Air Brake Valves(1), Automatic Drain Valves (410-10XXX Series)(1). 12 MO, 100,000 MI= Automatic Drain Valves (N20878/ N20879 Series), Height Control Valve, Scale-O-Matic and AC Boxes. See L20221W.pdf for warranty details
Warranty Time 12
Warranty Time UOM MO
UPC 00767653252131
VMRS Code 016008019

Part Interchanges

Haldex® is a Sweden-based manufacturer specializing in brake and air suspension systems for heavy duty vehicles. Its product line consists of brake components for wheel ends, including disc brakes, brake adjusters, and actuators. It also offers air control products such as compressed air dryers, valves, ABS, and EBS. All these Haldex products are designed with safety and efficient operation in mind, cutting down on potential hazards and maintenance costs in the long run. Today, Haldex runs manufacturing and R&D facilities in 19 countries across four continents. It is dedicated to producing high-quality brake and suspension parts for its customers all around the world as well as developing new technologies for the future.
