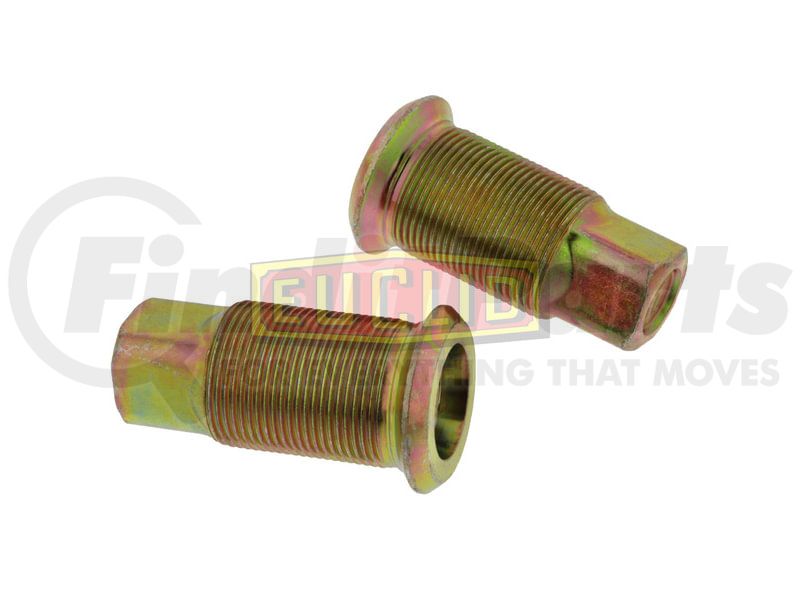

EUCLID part description

Application Information For Dual Mounted Steel And Steel/Aluminum Wheels
Hex 13/16 in.
Inner Thread 3/4/2016
Inner Thread Min. Depth 1-1/4 in.
Notes Through hardened.
Outer Overall Length 2/9/2016
Outer Thread 1-1/8-16
Replaces 336L, 337L, 511006L, 896L, R007896L, R007896LBK, M131, W159, W621
Type Inner Cap Nut
VMRS Code 018-003-014
Wheel Mount Dual

Features & Benefits

  • Through Hardened
Product Type Inner Cap Nut
Side Left
Outer Thread Size 1.13" - 16
Inner Thread Size 0.75" - 16
Inner Thread Minimum Depth 1.25"
Outer Overall Length 2.56"

Product Description


EUCLID E-7896-L Cross Reference

We have 6 alternatives for the E-7896-L by EUCLID:

Euclid® is a world leader in the production of precision-engineered replacement parts for buses, trailers, as well as light-, medium- and heavy-duty trucks. This brand takes great pride in its products that meet and even exceed O.E.M. quality standards. Officially a part of Meritor since January 1999, Euclid remains the same despite all the changes the company has been through. When customers receive Euclid products, they know they are getting far more than ordinary replacement parts. Instead, they are getting the best replacement parts made today from a company they can trust. Euclid is a company that's continuously improving with technology to do a job the right way because it is the only way it knows how.
