(888) 312-8812 Login SignupEUCLID E-UB5161-16 Leaf Spring Axle U-Bolt Kit, Round Bend, 6.00 in. Thread Length, 7/8 in.-14 Thread Size
Tap to view 3 more
MSRP: $31.97
$1999
Save $11.98
Limited availability at this price!
In Stock
Get it by Thursday, Jul 30
EUCLID E-UB5161-16 Part Description
Manufacturer
Product Description
Suspension, Universal Bolt Kit
Features & Benefits
- Round-bend U-bolt wraps the axle and spring seating area
- 7/8-inch-14 thread size matches the nut-side fastening requirement
- Six-inch thread length supplies the reach needed through the stack
- Included hi-nuts and washers complete the clamping hardware package
- Premier 437 and 437A fit ties the kit to the correct suspension model

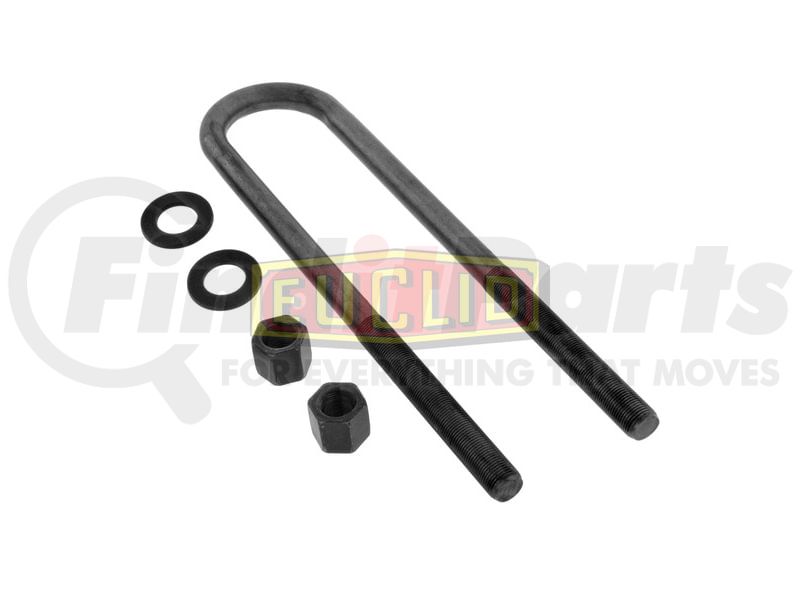

Euclid Leaf Spring Axle U-Bolt Kit
The Euclid Leaf Spring Axle U-Bolt Kit clamps the leaf spring and axle seating area with round-bend hardware, hi-nuts, and washers. Its 7/8-inch-14 thread size and 6-inch thread length give the kit the fastening reach needed for Premier 437 and 437A suspension applications. The U-bolt wraps around the spring stack or axle seat, while the nut side draws the assembly down into position. Since U-bolts take high clamp load, the hardware is typically not treated as a casual reuse item once removed from service. For Euclid E-UB5161-16, the suspension clamp point gets a correctly sized bolt-and-hardware package for reassembly.
| Grade | 5 |
| Includes | U-Bolt, Hi-Nuts, Washers |
| Length | 16.00 in. |
| Nut | E-3002A |
| Suspension Model | Premier 437, 437A |
| Thread Diameter/Threads Per Inch | 7/8/2014 |
| Thread Length | 6.00 in. |
| Type | Round Bend |
| Type Number | 1 |
| VMRS Code | 016-005-007 |
| Washer | E-2546 |
Features & Benefits
- Round-bend U-bolt wraps the axle and spring seating area
- Premier 437 and 437A fit ties the kit to the correct suspension model
| Thread | 7/8”–14” |
| A Dimension | 16" |
| B Dimension | 3" |
| C Dimension | 6" |
EUCLID E-UB5161-16 Specifications
Product Attributes
| Brand | Euclid |
| Grade | 5 |
| Includes | U-Bolt, Hi-Nuts, Washers |
| Length | 16.00 in. |
| Nut | E-3002A |
| Pallet Quantity | 112 |
| Suspension Model | Premier 437, 437A |
| Thread Length | 6.00 in. |
| Thread Size | 7/8 in.-14 |
| Type | Round Bend |
| Type Number | 01 |
| Washer | E-2546 |
| Weight | 6.05 |
| Width | 3.00 in. |
| Thread Size | 7/8 in.-14 |
| Thread Length | 6.00 in. |
EUCLID E-UB5161-16 Cross References
| Brand | Part Number |
|---|---|
| E-UB516116 | |
| AUTOMANN | AUBK516116, AUBK5161164 |
| BWP | M1497 |
| DAYTON PARTS BATCO | 361492, 5U5316R, 361584, 361584K |
| L AND H THREADED ROD | 51416, 51416K |
| SIRCO BRAKE | 5R783166 |
| WORLD AMERICAN | WA07-5014 |
| Westar | 9515808 |
