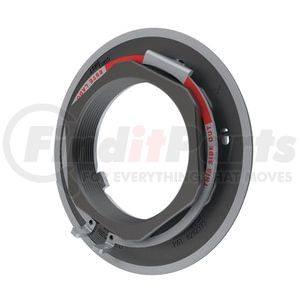

CONMET 10014624 - ASSY - HUB & ROTOR LMS
$1,18799
MSRP: $1,863.72
Save: $675.73
In stock
limited availability at this price!
. Learn more
CONMET part description
California Proposition 65 Warning
California Proposition 65 Warning
| Hub Assembly Data | |
| Hub Assembly | 10014624 |
| Status | Terminated (This assembly has been superseded by 10025753) |
| Assembly Type | LMS Hub & Rotor Assembly |
| Axle Location | Front |
| Axle Name | FL |
| Axle-Specific Specification | Aluminum Splined Disc |
| Mounting | Hub Piloted - 10 Studs |
| ABS | Yes |
| ABS Characteristic | Has Stamped ABS Ring |
| Wheel Stud Bolt Circle Diameter | 285.75 mm |
| Wheel Stud | 103193 |
| Wheel Stud Standout | 1.88" |
| Hub Rating | 10,000 LBS 4,536 kg |
| Hub Cap Bolt Circle Diameter | 5.500" |
| Brake Drum Type | Disc Rotor |
| Bearing Set | _-stand |
| Fill Hole | No Fill Hole |
| ABS Offset | 2.26" |
| Hub Offset | 5.09" |
| Weight | 116 LBS 53 kg |
| Machining | 10012830 |
| Machined Flange Thickness | 1.76" |
| Casting | 10012829 |
| Casting Material | A356.0-T61 Aluminum |
| Superseded By | 10025753 |
| Seal Vendor | SKF |
| Bill of Materials Ñ 10014624 Ñ LMS Hub & Rotor Assembly | |||||
| Item | Description | Material | Qty | Unit | Type |
|---|---|---|---|---|---|
| 10012827 | COLLAR SCREW & RETAINER ASSY | SEE DRAWING 10012827 | 10 | EA | Collar Screw & Retainer Plate Assembly |
| 10012809 | COLLAR SCREW, M8 X 1.25 | SEE DRAWING 10012809 | 1 | EA | Collar Screw - Splined Rotor Attachment |
| 10012808 | SPRING RETAINER | SEE DRAWING 10012808 | 1 | EA | Retainer For Splined Rotor Attachment |
| 10012807 | SHIM | SEE DRAWING 10012807 | 20 | EA | Shim For Splined Rotor Attachment |
| 10012806 | DISC BRAKE ROTOR | HIGH ALLOY, SEVERE DUTY | 1 | EA | Brake Rotor - Machined |
| 10014625 | LMS HUB ASSEMBLY | SEE DRAWING 10014625 | 1 | EA | Hub Assembly |
| 10005314 | SHIPPING TRAY INSERT | BLACK HDPE PLASTIC | 1 | EA | Other / Miscellaneous |
| 10014426 | SHIPPING BUNGEE-DISC | PLASTIC DISC & NYLON BUNGEE | 1 | EA | Shipping Bungee-Disc for PreSet/LMS |
| LMSFR1 | LMS WARRANTY (CR SEAL) | CR SEAL | 1 | EA | LMS Warranty |
| 103623 | PINE-TREE CLIP | PLASTIC | 2 | EA | Pine Tree Clip |
| 10005315 | SHIPPING CAP | BLACK HDPE PLASTIC | 1 | EA | Shipping Cap |
| 10008720 | SEAL (LMS) | SKF 43761 | 1 | EA | Seal |
| 10003807 | BEARING SPACER | STEEL | 1 | EA | Bearing Spacer |
| 10003824 | CONE, BEARING - OUTBOARD | 1/2-STAND; STEEL | 1 | EA | Bearing Cone |
| 10003823 | CONE, BEARING - INBOARD | 1/2-STAND; STEEL | 1 | EA | Bearing Cone |
| 107912 | RING, ABS | MILD STEEL | 1 | EA | ABS Tone Ring |
| 103193 | STUD, WHEEL - PROP CL 10.9 | M22 X 1.5MM X 3.64 LG | 10 | EA | Wheel Stud |
| 10003821 | CUP, BEARING - OUTBOARD | 1/2-STAND; STEEL | 1 | EA | Bearing Cup |
| 10003822 | CUP, BEARING - INBOARD | 1/2-STAND; STEEL | 1 | EA | Bearing Cup |
| 10012830 | HUB, MACHINED | 10012829 HUB, CAST ALUM | 1 | EA | Hub Machining |
| 10012829 | HUB, CASTING | A356-T6 ALUMINUM | 1 | EA | Hub Casting |
