(888) 312-8812 Login SignupGATES TR28333 Green Stripe Truck & Bus Series V-Belt
Tap to view 1 more
$3799
Limited availability at this price!
In Stock
Get it by Thursday, Jan 15
GATES TR28333 Part Description
Manufacturer
Product Description

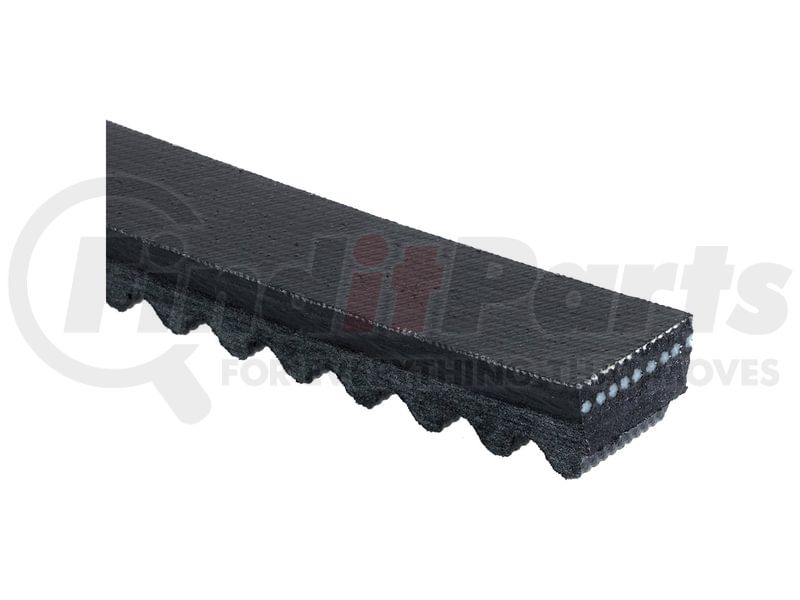

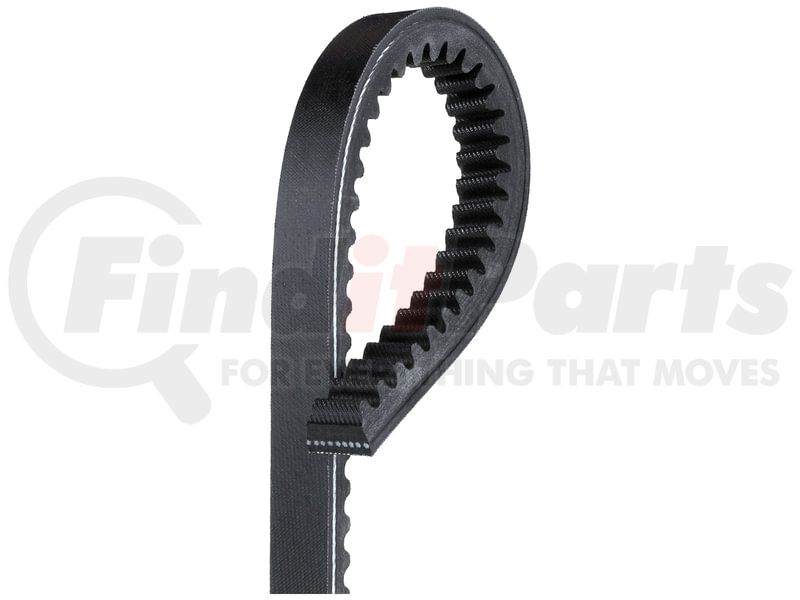

Green Stripe Truck & Bus Series V-Belt
Application Summary
Austin-Western, 55, IH IU4, Hyd. Pump
Features & Benefits
- Molded notches reduce bending stress, especially on small diameter pulleys, while dissipating heat
- High modulus, high strength tensile cord
- Oil and heat-resistant construction throughout
- Meets SAE J636b and SAE J637 specifications
- Meets RMA oil and heat resistant standards and static conductivity requirements
- NOTE: Some sizes available as Gates PowerBand joined V-belts
GATES TR28333 Specifications
Product Attributes
| Type | Truck & Bus V-Belt |
| Cross Section Designation | VA |
| Angle | 36 |
| Strand Quantity | 1 |
| Top Width | .775 in |
| Outside Circumference | 33.82 in |
| Effective Length | 33.24 in |
| Construction | Notched |
| Notched | Yes |
| Belt Material | EPDM |
| Cord Material | Polyester |
| Top Width | 20 mm |
| Outside Circumference | 859 mm |
| Effective Length | 844 mm |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4010323000 |
| Country of Origin (Primary) | US |
| UPC | 00072053276749 |
| VMRS Code | 065005003 |
| UNSPSC | 26111801 |
GATES TR28333 Cross References
| Brand | Part Number |
|---|---|
| 86200543 | |
| <Unknown> | 120003, 1B9130, 213144, 26949, 28341, 340292, 69054D, V140 |
| ACDelco | T28333 |
| Auborn Construction | H10307, K10342 |
| Bando | 7330 |
| Brockway | 216465 |
| CONTINENTAL AG | 24333 |
| Carquest | TR28333 |
| Chicago Pneumatic | 15610 |
| Clark Equipment | 366186, SK183 |
| Cummins | 126340, 126840, 145456, 178645 |
| Dayco | 28333, 44610, 47551, 51731, 53662, 57442, 969M |
| Diamond Reo | DX5836B |
| Durkee-Atwood | 28-343 |
| Freightliner Trucks | 2310001019, 231000119 |
| GOODYEAR BELTS | 28333 |
| General Motors | 2135436, 2164565, 2190656 |
| Goodyear | 28333, 24333 |
| International Harvester (IHC) | 46869D |
| John Deere | L348 |
| MBL Three Stars | 28335 |
| Metric | 20A0845 |
| Mitsuboshi | RECMF9320 |
| Mopar | BH-27, BH-29 |
| NAPA | 25-08480 |
| NAPA Belts/Hose | 25-28333 |
| Service King | 160P |
| Wagner Electric | AE18912 |
| White | 1706987, 348236, 372110, 45465A, 46882A, 700229, 76967, 76967A |
GATES TR28333 Fits Vehicles
- Auburn Model 850Y (1934)
- Auburn Model 652Y (1934)
- Auburn Model 6-654 (1936)
- Nash Special (1925-1929)
- Auburn Model 850X (1934)
- Auburn Model 6-653 (1935)
- Auburn Model 652X (1934)
- Auburn Model 8-851 (1935)
- Viking Eight (1929-1930)
- Cord L-29 (1930)
- Auburn Model 8-852 (1936)
