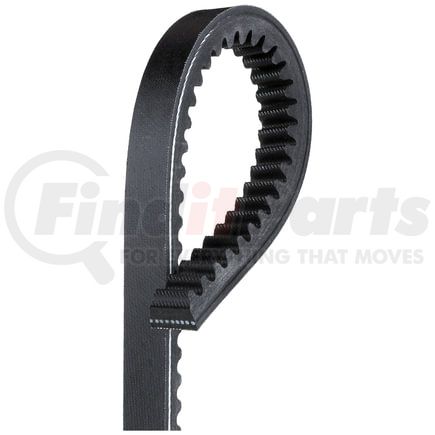

Gates TR22474 - CL12-TRUCK BELT
$3049
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description
Green Stripe Truck & Bus Series V-Belt
Application Summary
2002-01 Isuzu, FRR, Isuzu 6HK1-TC Diesel, Fan & Alt.
Features & Benefits
- Molded notches reduce bending stress, especially on small diameter pulleys, while dissipating heat
- High modulus, high strength tensile cord
- Oil and heat-resistant construction throughout
- Meets SAE J636b and SAE J637 specifications
- Meets RMA oil and heat resistant standards and static conductivity requirements
- NOTE: Some sizes available as Gates PowerBand joined V-belts
Product Attributes
| Type | Truck & Bus V-Belt |
| Cross Section Designation | RA |
| Angle | 40 |
| Strand Quantity | 1 |
| Top Width | .594 in |
| Outside Circumference | 47.93 in |
| Effective Length | 47.35 in |
| Construction | Notched |
| 9837 | Yes |
| Belt Material | EPDM |
| Cord Material | Polyester |
| Top Width | 15 mm |
| Outside Circumference | 1218 mm |
| Effective Length | 1203 mm |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4010323000 |
| Country of Origin (Primary) | US |
| UPC | 00072053274608 |
| VMRS Code | 065005003 |
| UNSPSC | 26111801 |
Part Interchanges
- Bosch 910416-6224
- Canadian Tire 14-0786-8
- Mopar BH-134
- Mopar BH-282
- Motorcraft JE-474
- Motorcraft JE-474-C
- Sierra 18-22475
- White 027006067
- White 027016834
- White 049004149
- White 3110K129
- White 3110K157
- White 35271B
- White 542312
- White 543818
- White 568324
- White 695331
- ACDelco T22474
- Dayco 22475
- Dayco 42
- Dayco 430701
- Dayco 48599
- Dayco 49358
- Dayco 53603
- Dayco 22470
- BF Goodrich 22480
- Carquest TR22474
- Allis Chalmers 4373544
- Allis Chalmers 4386812
- Allis Chalmers 45GMX6
- Allis Chalmers 4616585
- Allis Chalmers DE663342
- American Motors Corp (AMC) 927212
- Bando 5465
- Bando B5470
- Bando B5460
- British Leyland 1B9392
- Case Tractor 685682
- Caterpillar 1765006
- Clark Equipment 1302732
- Clark Equipment 489
- Clark Equipment 508250
- Climax Engr 41216
- Continental Belt 22470MK
- Cummins 106070
- Cummins 146340
- Cummins 178470
- Cummins 178646
- Cummins 550432
- Cummins S20381
- Daihatsu 9932301091
- Diamond Reo 35271A
- Diamond Reo 3856B1470
- Diamond Reo DT2401G
- Epton 22480
- First Products 22-475
- Fleetrite ZAH22470
- Frigiking 9119208
- Gardner Denver 13AE27
- General Motors 1340661
- General Motors 1340667
- General Motors 7134631
- General Motors 5140703
- Ford 313149
- Toyota 9934301195
- Toyota DR1013671
- Toyota MF8479
- Isuzu 1136711830
- Isuzu 1136714050
- Isuzu 15AX1210A
- Mitsubishi 900145286A
- Mazda V10118381
- Hino 9001-45286A
- International Harvester (IHC) 182715R2
- International Harvester (IHC) 250243R1
- International Harvester (IHC) 328930R1
- International Harvester (IHC) 341190R1
- International Harvester (IHC) 780193C1
- John Deere B27774
- John Deere H97758
- John Deere T113931
- John Deere T20334
- Massey Ferguson 214513M1
- Hyster 5136710160
- Studebaker 638111
- Komatsu 04120-21747
- Kysor 300105
- Lazorlite L39-1140
- Leroi D41448
- Lincoln Electric T13274
- Mitsuboshi 34349-00800
- Mitsuboshi MF8465
- Mitsuboshi RECMF8465
- Mitsuboshi REMF8465
- Mitsuboshi MF8460
- Mitsuboshi RECMF8460
- Mitsuboshi REMF8460
- Onan 5110137
- Onan 511P18
- Pacific Car & Foundry 2800047470
- Pacific Car & Foundry 2800047473
- Schramm Compressors 9974475
- UD Trucks 1195005D00
- Mack 88GB232P6
- Mack 88GB354P34
- Goodyear 22470
- Goodyear 22474
- Goodyear 22480
- NAPA Belts/Hose 25-22474
- Alliance Truck Parts GT22477
- Alliance Truck Parts GT22477E
- Alliance Truck Parts GT22583
- Durkee-Atwood 22-482
- Eaton, Yale & Towne 2033495
- Gray Marine 56162
- Grumman Flxible 90801
- Grumman Flxible C41C41L
- John E. Mitchell 12652
- Marmon MP440130
- MBL Three Stars 22475
- NAPA 25-12050
- Service King 6347
- Service King 6348
- Teledyne Continental F226K259
- U.S. Government 507230
- <Unknown> 120334T
- <Unknown> 182715R1
- <Unknown> 22473
- <Unknown> 29063
- <Unknown> 341198R1
- <Unknown> 35721A
- <Unknown> 50821
- <Unknown> 5136710180
- <Unknown> 647440
- <Unknown> 695337
- <Unknown> 9091602142
- <Unknown> 9952311198
- <Unknown> 9974575
- <Unknown> A13570
- <Unknown> D663342
- <Unknown> MH440130
- Metric 15A1205
- Metric 15A1195
Fits Vehicles
- UD 1300 (1993)
- UD 1400 (1994-1995)
- GMC W6500 Forward (1987-1991)
- GMC W7500 Forward (1984-1991)
- Chevrolet W7500 Tiltmaster (1984-1991, 1993)
- Chevrolet W6500 Tiltmaster (1987-1991)
- Isuzu FVR (1988-1990, 2002)
- Isuzu FTR (1988-1991)
- Isuzu FSR (1987-1991, 2002)
- Isuzu EVR (1988-1991)
- Isuzu FRR (2001-2002)
- Hino FD2320 (2003-2004)
- Hino FE2620 (2002-2004)
- Hino FD2220 (2002)
- Toyota Land Cruiser (1981-1987)
