Gates G51210-0304 - CL12-3PCTS-4FJS
$999
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description

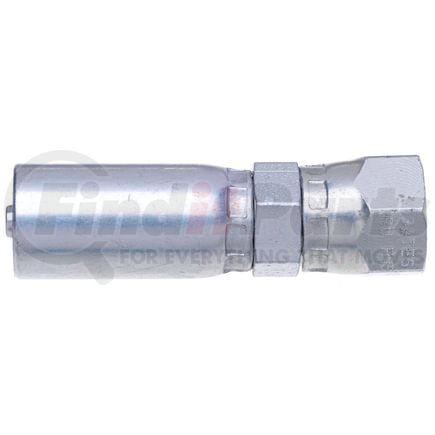

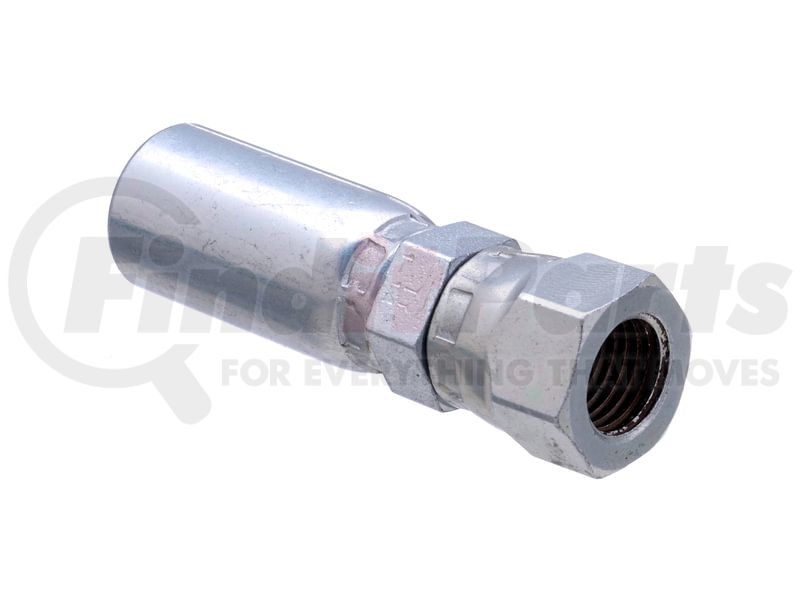

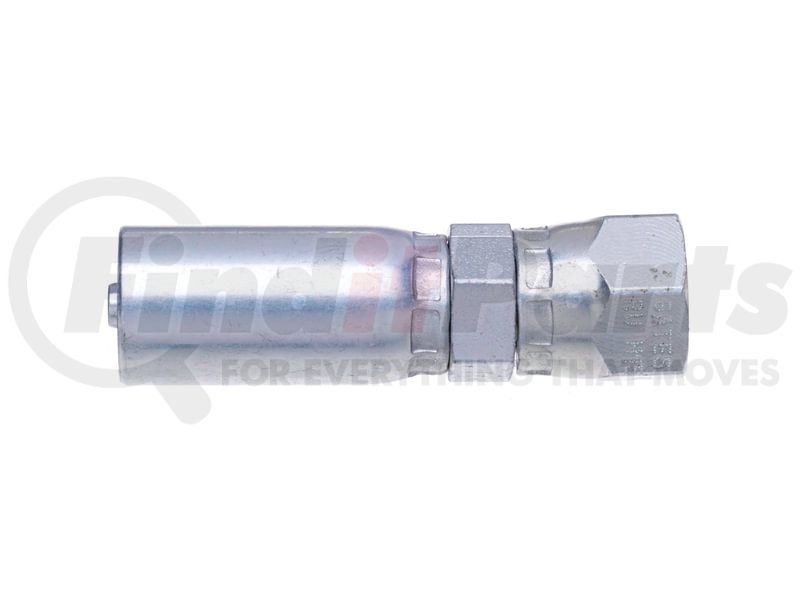

Dual Seat Female JIC 37/SAE 45 Flare Swivel - 45 Bent Tube (One-Piece)
Features & Benefits
- Designed to perform with TH7 and TH7NC thermoplastic hose
- Various thread styles available to meet the needs of applications utilizing thermoplastic hose
Product Attributes
| Coupling Description | PCTS Thermoplastic One-Piece Dual Seat Female JIC 37/SAE 45 Flare Swivel - 45 Bent Tube |
| Industrial Description | 3PCTS-4FJSX |
| Thread Size | 7/16-20 |
| Inside Diameter | .1875 IN |
| Hydraulic Hose Recommendation | Gates TH7, TH7NC |
| Stem Hex Size | .5625 IN |
| Nut Hex Size | .625 IN |
| Cut-Off Length | 1.16 IN |
| Length | 2.23 IN |
| Inside Diameter | 4.8 MM |
| Cut-Off Length | 29.5 MM |
| Length | 56.6 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| UPC | 00072053844511 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
Part Interchanges
