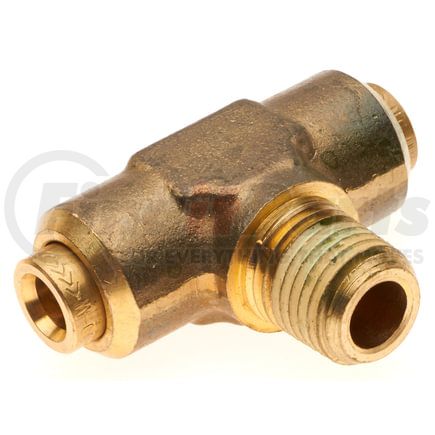

(888) 312-8812 Login SignupGATES G31134-0806 Air Brake Branch Tee to Male Pipe (SureLok)
Tap to view 1 more
$5699
Limited availability at this price!
In Stock
Get it by Wednesday, Jul 29
GATES G31134-0806 Part Description
Manufacturer
Product Description
Air Brake Branch Tee to Male Pipe (SureLok)
Features & Benefits
- Internal and external machined thread for connection to ports. Machining retains collet, tube support and O-Ring
- Tube support prevents tube collapse during severe loading conditions
- Collet teeth grip the tube, holding it firmly in the fitting
- Internal O-Ring provides a seal and necessary interference between tube and fitting body
GATES G31134-0806 Specifications
Product Attributes
| Coupling Description | SureLok Air Brake Branch Tee to Male Pipe |
| Industrial Description | 8AB-8AB-6MP |
| Thread Size | 3/8-18 |
| Outside Diameter | .5 IN |
| Stem Hex Size | 22 MM |
| Drop Length | 1.14 IN |
| Length | 2.6 IN |
| Maximum Working Pressure | 150 PS |
| Temperature Rating | -40 Deg. F to +200 Deg. F (-40 Deg. C to +93 Deg. C) |
| Material | 360 Brass (Body & Collet) |
| Seal Material | Ethylene Propylene |
| Drop Length | 29 MM |
| Length | 66 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 7412200015 |
| Stock Status | S |
| UPC | 00029769156940 |
| VMRS Code | 059032033 |
| UNSPSC | 27121700 |
