(888) 312-8812 Login SignupGATES G31102-0806 Air Brake to Male Pipe - 45 (SureLok)
Tap to view 3 more
$3699
Limited availability at this price!
In Stock
Get it by Thursday, Jul 30
GATES G31102-0806 Part Description
Manufacturer
Product Description

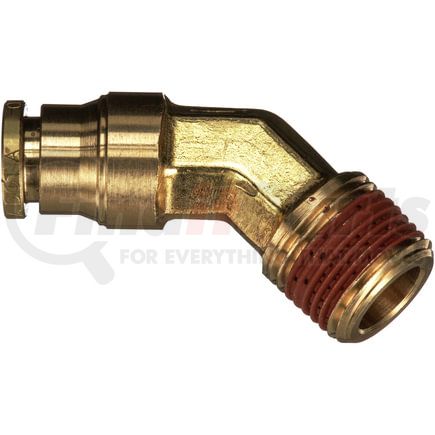

Air Brake to Male Pipe - 45 (SureLok)
Features & Benefits
- Internal and external machined thread for connection to ports. Machining retains collet, tube support and O-Ring
- Tube support prevents tube collapse during severe loading conditions
- Collet teeth grip the tube, holding it firmly in the fitting
- Internal O-Ring provides a seal and necessary interference between tube and fitting body
GATES G31102-0806 Specifications
Product Attributes
| Coupling Description | SureLok Air Brake to Male Pipe - 45 |
| Industrial Description | 8AB-6MP45 |
| Thread Size | 3/8-18 |
| Outside Diameter | .5 IN |
| Nut Hex Size | 22 MM |
| Drop Length | 1.12 IN |
| Length | 2.38 IN |
| Maximum Working Pressure | 150 PS |
| Temperature Rating | -40 Deg. F to +200 Deg. F (-40 Deg. C to +93 Deg. C) |
| Material | 360 Brass |
| Seal Material | Ethylene Propylene |
| Drop Length | 28.5 MM |
| Length | 60.5 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 7412200015 |
| Stock Status | S |
| UPC | 00029769157206 |
| VMRS Code | 059032033 |
| UNSPSC | 27121700 |
