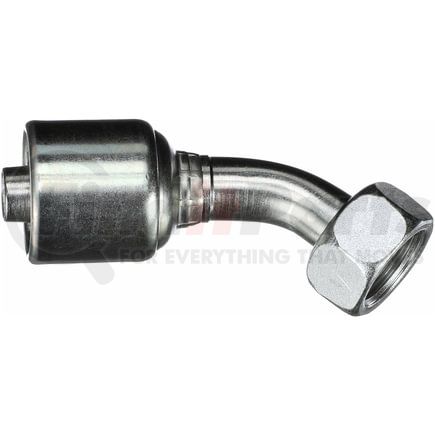

(888) 312-8812 Login SignupGATES G25831-1010 Female British Standard Parallel Pipe O-Ring Swivel - 45 Bent Tube (MegaCrimp)
Tap to view 3 more
$11449
Limited availability at this price!
In Stock
Get it by Monday, Aug 17
GATES G25831-1010 Part Description
Manufacturer
Product Description
Female British Standard Parallel Pipe O-Ring Swivel - 45 Bent Tube (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1,000,000 impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE Standard
GATES G25831-1010 Specifications
Product Attributes
| Coupling Description | MegaCrimp Female British Standard Parallel Pipe O-Ring Swivel - 45 Bent Tube |
| Industrial Description | 10G-10FBSPORX45 |
| Thread Size | 5/8-14 |
| Inside Diameter | .625 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Nut Hex Size | 30 MM |
| Drop Length | .84 IN |
| Cut-Off Length | 2.05 IN |
| Length | 3.22 IN |
| Seal Type | Mated Angle w/O-Ring |
| Termination | British |
| O-Ring Location | On Female w/Inverted Nose Seat |
| Seat Angle | 30 |
| Gender | Female |
| Bent Tube Angle | 45 |
| Swivel | Yes |
| Inside Diameter | 15.9 MM |
| Drop Length | 21.3 MM |
| Cut-Off Length | 52.1 MM |
| Length | 81.8 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Country of Origin (Primary) | MX |
| Stock Status | S |
| UPC | 00072053449914 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G25831-1010 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | 1A10BFA10 |
| Dayco | 116236, HY10-10BPF45T |
| Goodyear | 14115-1010, B2-BPFX45-1010 |
| Kurt Hydraulics | F-BSPX45-10-10 |
| N/A | T2270-1010, 04032766, M20542-10-10 |
| NAPA | G25831-1010 |
| Parker | 1B143-10-10 |
| Weatherhead | 10U50P, 10Z50P, 10M-50P, 10U-50P, 10Z-50P |
