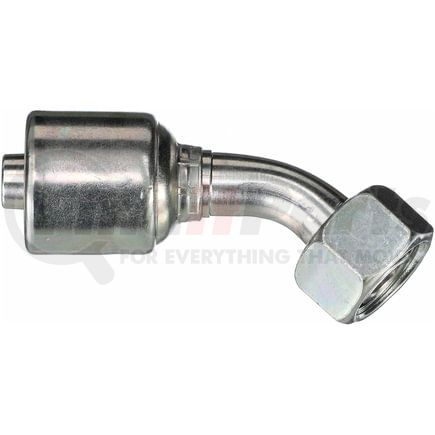

(888) 312-8812 Login SignupGATES G25650-1222 Female DIN 24 Cone Swivel - Light Series with O-Ring - 45 Bent Tube (MegaCrimp)
Tap to view 3 more
$14549
Limited availability at this price!
In Stock
Get it by Friday, Aug 7
GATES G25650-1222 Part Description
Manufacturer
Product Description
Female DIN 24 Cone Swivel - Light Series with O-Ring - 45 Bent Tube (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1 million impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard
GATES G25650-1222 Specifications
Product Attributes
| Coupling Description | MegaCrimp Female DIN 24 Cone Swivel - Light Series w/ O-Ring - 45 Bent Tube |
| Industrial Description | 12G-22FDLORX45 |
| Thread Size | M30X2.0 |
| Inside Diameter | .75 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Outside Diameter | 22 MM |
| Nut Hex Size | 36 MM |
| Drop Length | 1.17 IN |
| Cut-Off Length | 2.6 IN |
| Length | 4.12 IN |
| Seal Type | Mated Angle w/O-Ring |
| Termination | DIN |
| O-Ring Location | On Female w/Inverted Nose Seat |
| Seat Angle | 24 |
| DIN Series | Light |
| Gender | Female |
| Bent Tube Angle | 45 |
| Swivel | Yes |
| Inside Diameter | 19.1 MM |
| Drop Length | 29.8 MM |
| Cut-Off Length | 66.1 MM |
| Length | 104.6 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Country of Origin (Primary) | CZ |
| Stock Status | S |
| UPC | 00072053844726 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G25650-1222 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | 1A20DLA12 |
| Caterpillar | 124-2219 |
| Dayco | 116318, 116319 |
| Goodyear | 14245-1230, B2-DLFX45-1230, UC-DLFX45-1230 |
| Kurt Hydraulics | F-DINLX45-12-30 |
| N/A | 04032581, M21543-12-30 |
| NAPA | G25650-1222 |
| Parker | 1C443-22-12, 1CE43-22-12 |
| Weatherhead | 12Z-22D |
