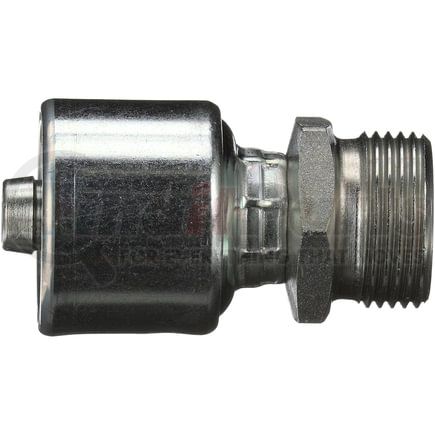

GATES G25615-1018 Part Description
Manufacturer
Product Description
Male DIN 24 Cone - Light Series (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1 million impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard
GATES G25615-1018 Specifications
Product Attributes
| Coupling Description | MegaCrimp Male DIN 24 Cone - Light Series |
| Industrial Description | 10G-18MDL |
| Thread Size | M26X1.5 |
| Inside Diameter | .625 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Outside Diameter | 18 MM |
| Stem Hex Size | 27 MM |
| Cut-Off Length | 1.04 IN |
| Length | 2.56 IN |
| Seal Type | Mated Angle w/O-Ring |
| Termination | DIN |
| O-Ring Location | On Female w/Inverted Nose Seat |
| Seat Angle | 24 |
| DIN Series | Light |
| Gender | Male |
| Bent Tube Angle | Straight |
| Swivel | No |
| Inside Diameter | 15.9 MM |
| Cut-Off Length | 26.5 MM |
| Length | 65 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Country of Origin (Primary) | MX |
| Stock Status | S |
| UPC | 00072053206067 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G25615-1018 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | 1A16DK10 |
| Caterpillar | 124-2183 |
| Dayco | 116133 |
| Goodyear | 14255-1026, B2-DLM-1026 |
| Kurt Hydraulics | M-DINLX-10-26 |
| N/A | T2650-1026, 04032545, M11110-10-26 |
| NAPA | G25615-1018 |
| Parker | 1D043-18-10, 1D0HY-18-10 |
| Weatherhead | 10U18A, 10Z18A, 10M-18A, 10U-18A, 10Z-18A |
