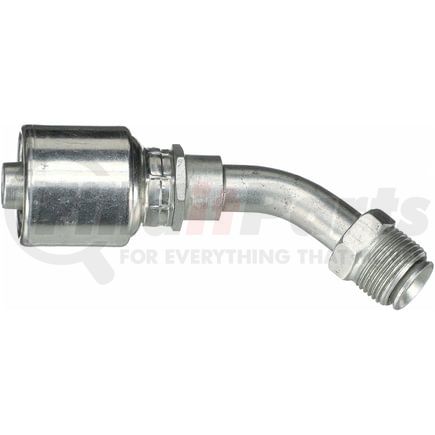

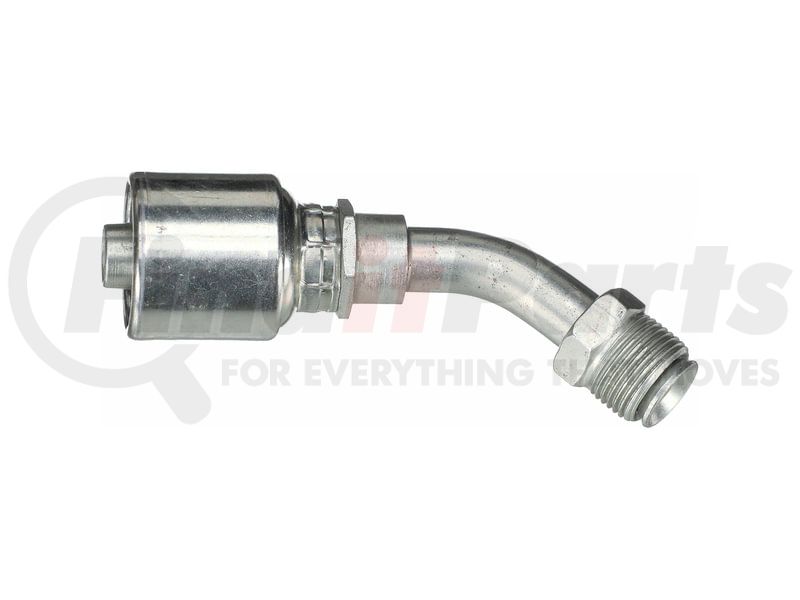

(888) 312-8812 Login SignupGATES G25502-0808 SAE Male Inverted Swivel - 45 Bent Tube (MegaCrimp)
Tap to view 3 more
$4799
Limited availability at this price!
In Stock
Get as soon as Thursday, Oct 1
GATES G25502-0808 Part Description
Manufacturer
Product Description
SAE Male Inverted Swivel - 45 Bent Tube (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1 million impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard
GATES G25502-0808 Specifications
Product Attributes
| Coupling Description | MegaCrimp SAE Male Inverted Swivel - 45 Bent Tube |
| Industrial Description | 8G-8MIX45 |
| Thread Size | 3/4-18 |
| Inside Diameter | .5 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Nut Hex Size | .75 IN |

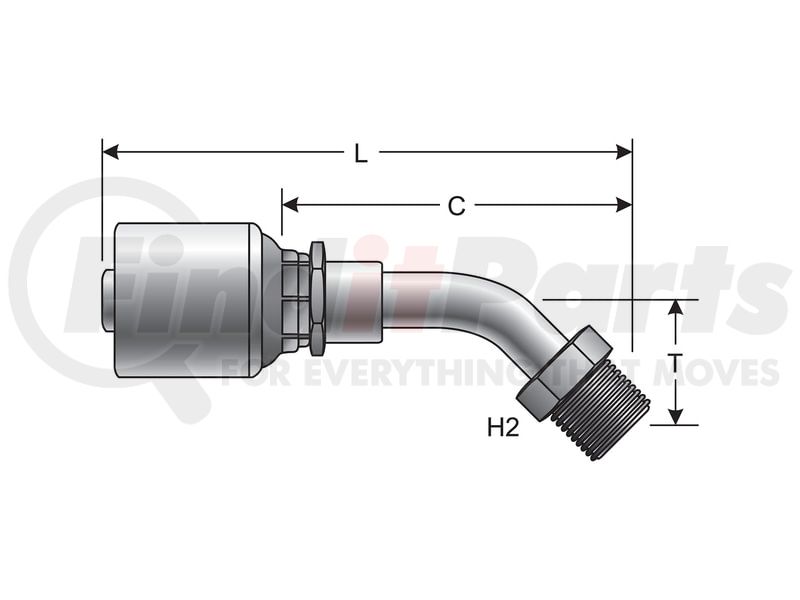

| Drop Length | 1.14 IN |
| Cut-Off Length | 2.7 IN |
| Length | 4.17 IN |
| Seal Type | Mated Angle |
| Nose Seat Type | Inverted |
| Mating Angle | 45 |
| Gender | Male |
| Bent Tube Angle | 45 |
| Swivel | Yes |
| Inside Diameter | 12.7 MM |
| Drop Length | 29 MM |
| Cut-Off Length | 68.5 MM |
| Length | 106 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Country of Origin (Primary) | US |
| Stock Status | S |
| UPC | 00072053776133 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
