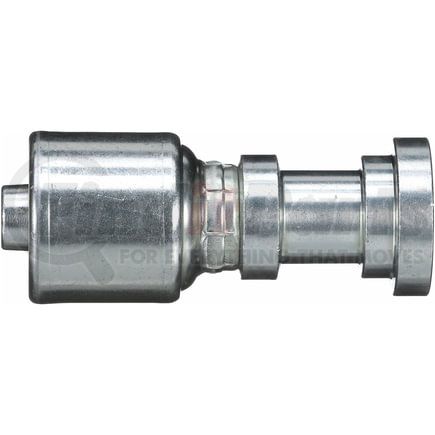

Gates G25300-1212 - Code 61 O-Ring Flange (MegaCrimp)
$5649
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description
Code 61 O-Ring Flange (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1 million impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard
Product Attributes
| Coupling Description | MegaCrimp Code 61 O-Ring Flange |
| Industrial Description | 12G-12FL |
| Inside Diameter | .75 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Flange Thickness | .27 in |
| Flange Diameter | 1.5 IN |
| Cut-Off Length | 1.85 IN |
| Length | 3.86 IN |
| Seal Type | O-Ring |
| O-Ring Location | Flange Groove |
| Termination | Code 61 |
| Bent Tube Angle | Straight |
| Inside Diameter | 19.1 MM |
| Flange Thickness | 6.9 MM |
| Flange Diameter | 38.1 MM |
| Cut-Off Length | 47 MM |
| Length | 98 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| Country of Origin (Primary) | US |
| UPC | 00072053409376 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
Part Interchanges
