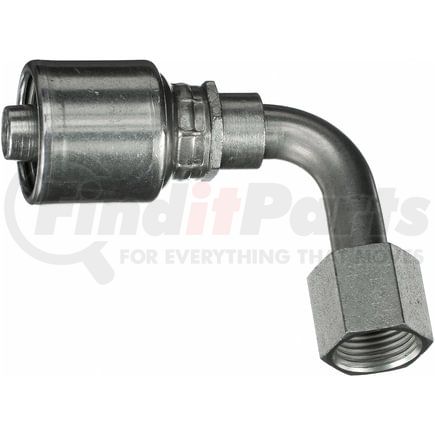

Gates G25205-0608 - Female SAE 45 Flare Swivel - 90 Bent Tube (MegaCrimp)
$4149
MSRP: $51.08
Save: $9.59
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description
Female SAE 45 Flare Swivel - 90 Bent Tube (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1 million impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard
Product Attributes
| Coupling Description | MegaCrimp Female SAE 45 Flare Swivel - 90 Bent Tube |
| Industrial Description | 6G-8FSX90 |
| Thread Size | 3/4-16 |
| Inside Diameter | .375 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Nut Hex Size | .875 IN |
| Drop Length | 1.75 IN |
| Cut-Off Length | 1.4 IN |
| Length | 2.5 IN |
| Seal Type | Mated Angle |
| Nose Seat Type | Standard |
| Mating Angle | 45 |
| Gender | Female |
| Bent Tube Angle | 90 |
| Swivel | Yes |
| Inside Diameter | 9.5 MM |
| Drop Length | 44.5 MM |
| Cut-Off Length | 35.6 MM |
| Length | 63.5 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| UPC | 00072053396218 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
