GATES G25200-0606 Part Description
Manufacturer
Product Description

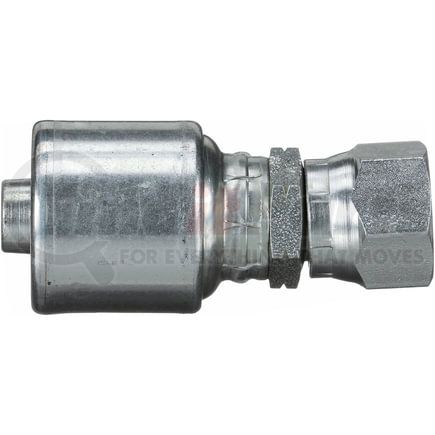

Female SAE 45 Flare Swivel (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1 million impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard
GATES G25200-0606 Specifications
Product Attributes
| Coupling Description | MegaCrimp Female SAE 45 Flare Swivel |
| Industrial Description | 6G-6FSX |
| Thread Size | 5/8-18 |
| Inside Diameter | .375 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Stem Hex Size | .625 IN |
| Nut Hex Size | .75 IN |
| Cut-Off Length | 1.35 IN |
| Length | 2.44 IN |
| Seal Type | Mated Angle |
| Nose Seat Type | Standard |
| Mating Angle | 45 |
| Gender | Female |
| Bent Tube Angle | Straight |
| Swivel | Yes |
| Inside Diameter | 9.5 MM |
| Cut-Off Length | 34.2 MM |
| Length | 62.1 MM |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Stock Status | S |
| UPC | 00072053323382 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G25200-0606 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | 1AA6FS6, FJ9123-0606S |
| Caterpillar | 069-2120, 124-2038, 154-0086 |
| Dayco | 108003, 108005, 108345, DC06-06FA |
| Eaton | 06Z-406 |
| Goodyear | 13775-0606, 14775-0606, B2-SFFX-0606, T8-SFFX-0606 |
| Kurt Hydraulics | FSX-06-06, WH06U-406 |
| N/A | 04032074, M22612-06-06 |
| NAPA | G25200-0606 |
| Parker | 10843-06-06, 10843-6-6, 108HY-6-6 |
| Weatherhead | 06E406, 06EE406, 06U406, 06Z406, 22906P406, 33606E-406, 33606E406, 33806P406, 00906B-406, 33806P-406, 3903-06A06, 04U-406, 06W-406, 06E-406, 06U-406 |
