GATES G25175-1012 Part Description
Manufacturer
Product Description

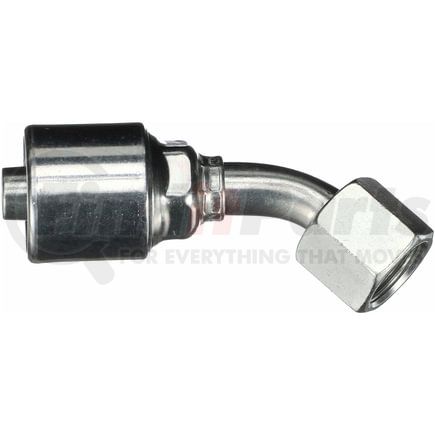

Female JIC 37 Flare Swivel - 45 Bent Tube (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1 million impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard
GATES G25175-1012 Specifications
Product Attributes
| Coupling Description | MegaCrimp Female JIC 37 Flare Swivel - 45 Bent Tube |
| Industrial Description | 10G-12FJX45S |
| Thread Size | 1 1/16-12 |
| Inside Diameter | .625 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Nut Hex Size | 32 MM |
| Drop Length | .83 IN |
| Cut-Off Length | 3.09 IN |
| Length | 4.57 IN |
| Seal Type | Mated Angle |
| Nose Seat Type | Standard |
| Mating Angle | 37 |
| Gender | Female |
| Bent Tube Angle | 45 |
| Swivel | Yes |
| Inside Diameter | 15.9 MM |
| Drop Length | 21 MM |
| Cut-Off Length | 78.5 MM |
| Length | 116 MM |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Stock Status | S |
| UPC | 00072053115406 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G25175-1012 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | 1AA12FJA10 |
| Dayco | 108578 |
| Eaton | 10Z-692 |
| Goodyear | 14420-1012, B2-JCFX45-1012, UC-JCFX45-1012 |
| Kurt Hydraulics | FJX45-10-12 |
| N/A | 04031954, C12222541-1012M, 210-1JM-692, M22543-10-12 |
| NAPA | G25175-1012 |
| Parker | 13743-12-10, 137HY-12-10 |
| Weatherhead | 10U692, 10Z692, 10M-692, 10U-692 |
