GATES G25175-0608 Part Description
Manufacturer
Product Description

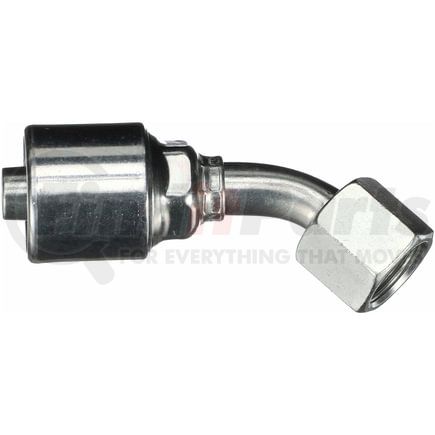

Female JIC 37 Flare Swivel - 45 Bent Tube (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1 million impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard
GATES G25175-0608 Specifications
Product Attributes
| Coupling Description | MegaCrimp Female JIC 37 Flare Swivel - 45 Bent Tube |
| Industrial Description | 6G-8FJX45S |
| Thread Size | 3/4-16 |
| Inside Diameter | .375 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Nut Hex Size | 24 MM |
| Drop Length | .59 IN |
| Cut-Off Length | 2.41 IN |
| Length | 3.51 IN |
| Seal Type | Mated Angle |
| Nose Seat Type | Standard |
| Mating Angle | 37 |
| Gender | Female |
| Bent Tube Angle | 45 |
| Swivel | Yes |
| Inside Diameter | 9.5 MM |
| Drop Length | 15 MM |
| Cut-Off Length | 61.2 MM |
| Length | 89.1 MM |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Stock Status | S |
| UPC | 00072053173048 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G25175-0608 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | 1AA8FJA6, FJ9129-0806S |
| Caterpillar | 124-1981 |
| Dayco | 108571, 151571, HY06-08FJ45T |
| Goodyear | 13420-0608, 14420-0608, B2-JCFX45-0608, T8-JCFX45-0608, UC-JCFX45-0608 |
| Kurt Hydraulics | FJX45-06-08 |
| N/A | 04031946, E06-08FJ45, C12222541-0608M, 206-1JM-688, M22543-06-08, 206-1JS-688 |
| NAPA | G25175-0608 |
| Parker | 13743-08-06, 13743-8-6, 137HY-8-6, 13756-8-6 |
| Weatherhead | 06E688, 06EE688, 06U688, 06Z688, 33606E-688, 33606E688, 06U-688, 3903-06608, 06E-688, 06Z-688 |
