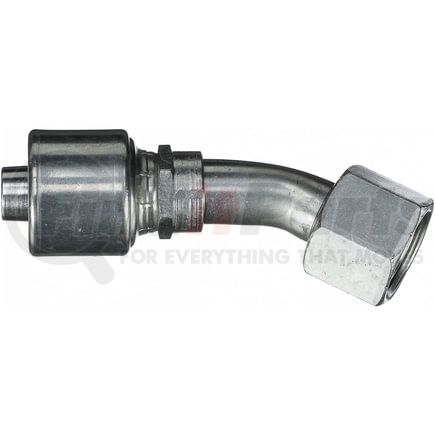

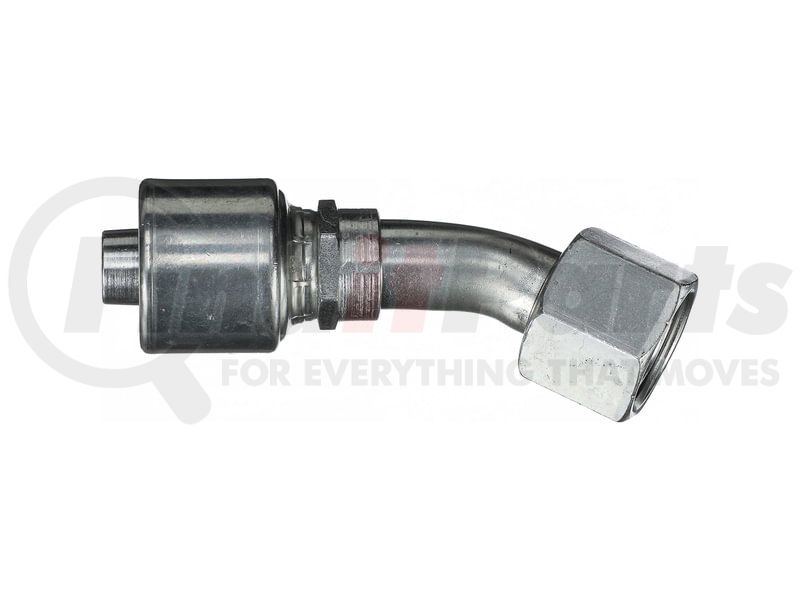

Gates G25172-1210 - Female JIC 37 Flare Swivel - 30 Bent Tube (MegaCrimp)
$8749
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description
Female JIC 37 Flare Swivel - 30 Bent Tube (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1 million impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard
Product Attributes

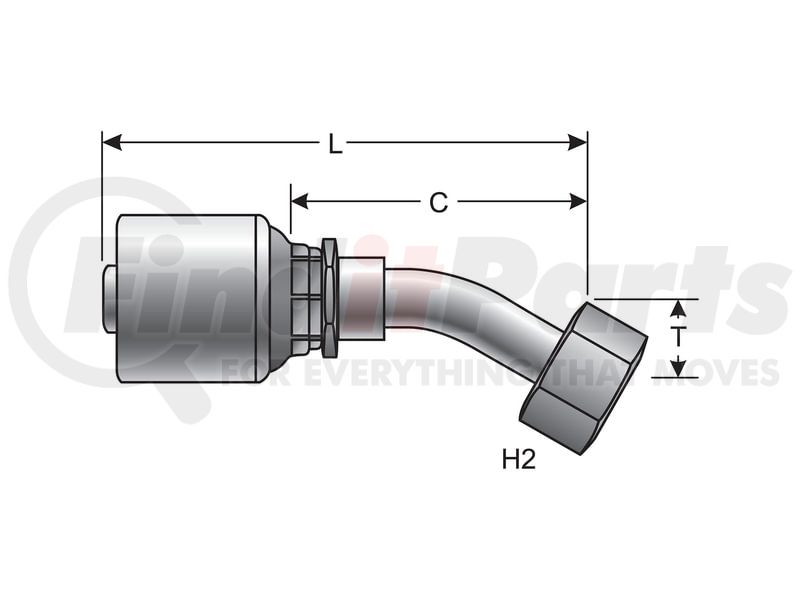

| Coupling Description | MegaCrimp Female JIC 37 Flare Swivel - 30 Bent Tube |
| Industrial Description | 12G-10FJX30-018 |
| Thread Size | 7/8-14 |
| Inside Diameter | .75 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Nut Hex Size | 27 MM |
| Drop Length | .71 IN |
| Cut-Off Length | 2.44 IN |
| Length | 4.45 IN |
| Seal Type | Mated Angle |
| Nose Seat Type | Standard |
| Mating Angle | 37 |
| Gender | Female |
| Bent Tube Angle | 30 |
| Swivel | Yes |
| Inside Diameter | 19.1 MM |
| Drop Length | 18 MM |
| Cut-Off Length | 62 MM |
| Length | 113 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| UPC | 00072053186291 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
