GATES G25170-2020 Part Description
Manufacturer
Product Description

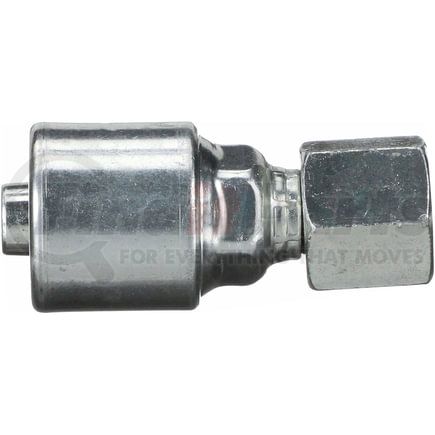

Female JIC 37 Flare Swivel (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1 million impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard
GATES G25170-2020 Specifications
Product Attributes
| Coupling Description | MegaCrimp Female JIC 37 Flare Swivel |
| Industrial Description | 20G-20FJX |
| Thread Size | 1 5/8-12 |
| Inside Diameter | 1.25 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Stem Hex Size | 41 MM |
| Nut Hex Size | 50 MM |
| Cut-Off Length | 2.1 IN |
| Length | 4.42 IN |
| Seal Type | Mated Angle |
| Nose Seat Type | Standard |
| Mating Angle | 37 |
| Gender | Female |
| Bent Tube Angle | Straight |
| Swivel | Yes |
| Inside Diameter | 31.8 MM |
| Cut-Off Length | 53.3 MM |
| Length | 112.3 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Stock Status | S |
| UPC | 00072053172072 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G25170-2020 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | 1AR20FJ20, 1AV20FJ20, 1GA20FJ20, FJ3114-2020S |
| Caterpillar | 124-1975 |
| Continental Belt | B2-JCFX-2020, BT-JCFX-2020 |
| Dayco | 108098, HY20-20FJ, DC20-20FJ |
| Eaton | 1AA20FJ20, 20Z-620 |
| Kurt Hydraulics | FJX-20-20 |
| N/A | 04031900, 1200-2020, M22711-20-20, M22712-20-20 |
| NAPA | G25170-2020 |
| Parker | 10643-20-20, 106HY-20-20 |
| Weatherhead | 20S620, 20U620, 20Z620, 20ZA620, 20S-620, 20U-620, 20U-616 |
