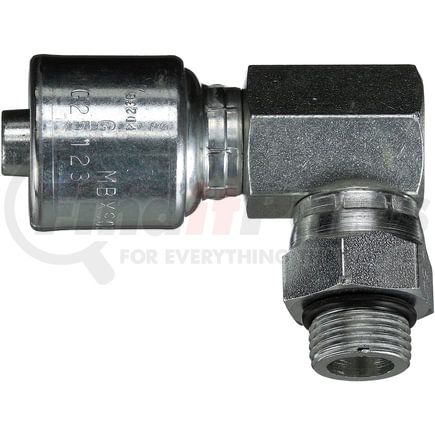

(888) 312-8812 Login SignupGATES G25123-0406 Male O-Ring Boss Swivel - 90 Block (MegaCrimp)
Tap to view 3 more
$5299
Limited availability at this price!
In Stock
Get it by Wednesday, Jun 10
GATES G25123-0406 Part Description
Manufacturer
Product Description
Male O-Ring Boss Swivel - 90 Block (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1,000,000 impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE Standard
GATES G25123-0406 Specifications
Product Attributes
| Coupling Description | MegaCrimp Male O-Ring Boss Swivel - 90 Block |
| Industrial Description | 4G-6MBX90BL |
| Thread Size | 9/16-18 |
| Inside Diameter | .25 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Nut Hex Size | .875 IN |
| Drop Length | 1.65 IN |
| Cut-Off Length | .8 IN |
| Length | 1.82 IN |
| Seal Type | O-Ring |
| O-Ring Location | Outside O-Ring Boss |
| Gender | Male |
| Bent Tube Angle | 90 Block |
| Swivel | Yes |
| Inside Diameter | 6.4 MM |
| Drop Length | 41.8 MM |
| Cut-Off Length | 20.2 MM |
| Length | 46.3 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Country of Origin (Primary) | US |
| Stock Status | S |
| UPC | 00072053173093 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G25123-0406 Cross References
| Brand | Part Number |
|---|---|
| Dayco | 108795, HY04-06RC90 |
| Goodyear | 14685-0406 |
| Kurt Hydraulics | MBX90-04-06 |
| N/A | 04031820 |
| NAPA | G25123-0406 |
| Parker | 10L43-6-4, 10LHY-6-4, 10LHY-6-4-BULK |
| Weatherhead | 04UR66, 04ZR66, 04U-R66, 04Z-R66 |
