GATES G25106-0806 Part Description
Manufacturer
Product Description

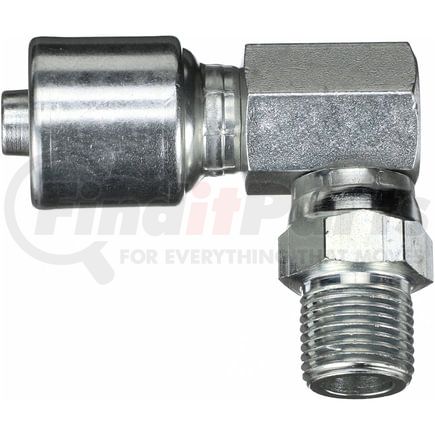

Male Pipe Swivel - 90 Block (NPTF - Without 30 Cone Seat) (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1,000,000 impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE Standard
GATES G25106-0806 Specifications
Product Attributes
| Coupling Description | MegaCrimp Male Pipe Swivel - 90 Block (NPTF - w/o 30 Cone Seat) |
| Industrial Description | 8G-6MPX90 |
| Thread Size | 3/8-18 |
| Inside Diameter | .5 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Nut Hex Size | .875 IN |
| Drop Length | 1.88 IN |
| Cut-Off Length | 1.07 IN |
| Length | 2.55 IN |
| Seal Type | Thread Interference |
| Thread Angle | 60 |
| Gender | Male |
| Bent Tube Angle | 90 Block |
| Swivel | Yes |
| Inside Diameter | 12.7 MM |
| Drop Length | 47.8 MM |
| Cut-Off Length | 27.2 MM |
| Length | 64.7 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Stock Status | S |
| UPC | 00072053288131 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G25106-0806 Cross References
| Brand | Part Number |
|---|---|
| Continental Belt | B2-NPMX90B-0806 |
| Dayco | DC08-08SP90 |
| Goodyear | 14650-0806 |
| N/A | 04031690, 208-1J-206 90 |
| NAPA | G25106-0806 |
