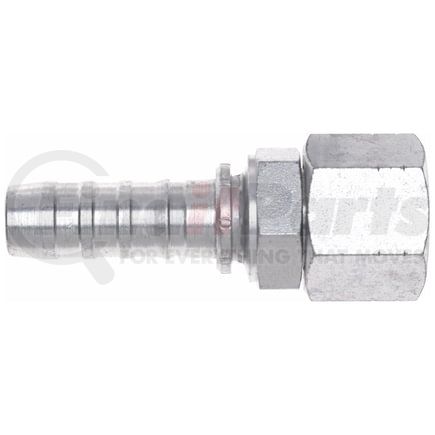

(888) 312-8812 Login SignupGATES G20910-1010 Female Komatsu Style Japanese Metric Swivel (GlobalSpiral)
Tap to view 2 more
$4699
Limited availability at this price!
In Stock
Get it by Tuesday, Aug 4
GATES G20910-1010 Part Description
Manufacturer
Product Description
Female Komatsu Style Japanese Metric Swivel (GlobalSpiral)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250degF temperature capability for longer assembly life
- +250°F temperature capability for longer assembly life
- +250?F temperature capability for longer assembly life
- +250˚F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
GATES G20910-1010 Specifications
Product Attributes
| Coupling Description | GlobalSpiral Female Komatsu Style Japanese Metric Swivel |
| Industrial Description | 10GS-10FKX |
| Thread Size | M24X1.5 |
| Inside Diameter | .625 IN |
| Hydraulic Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Stem Hex Size | 30 MM |
| Nut Hex Size | 32 MM |
| Cut-Off Length | 1.76 IN |
| Length | 3.74 IN |
| Inside Diameter | 15.9 MM |
| Cut-Off Length | 44.7 MM |
| Length | 95 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Country of Origin (Primary) | US |
| Stock Status | S |
| UPC | 00072053438130 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G20910-1010 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | 4S10KF10 |
| Goodyear | 28545-1024, 29545-1024 |
| Kurt Hydraulics | F-KOMX-10-24-W |
| N/A | 04031325 |
| NAPA | G20910-1010 |
| Parker | 1XU71-10-10 |
