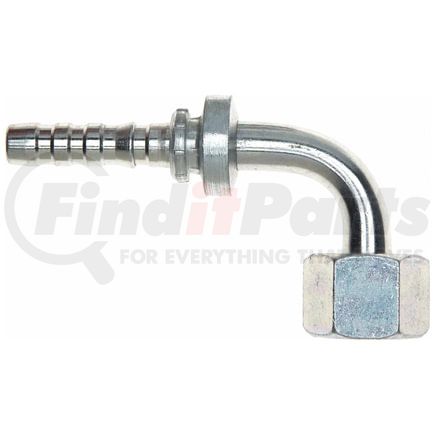

(888) 312-8812 Login SignupGATES G20730-1225 Female DIN 24 Cone Swivel-Hvy Series with O-Ring-90 Bent Tube (GlobalSpiral)
Tap to view 2 more
$17249
Limited availability at this price!
In Stock
Get it by Friday, Jul 3
GATES G20730-1225 Part Description
Manufacturer
Product Description
Female DIN 24 Cone Swivel-Hvy Series with O-Ring-90 Bent Tube (GlobalSpiral)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250degF temperature capability for longer assembly life
- +250°F temperature capability for longer assembly life
- +250?F temperature capability for longer assembly life
- +250˚F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
GATES G20730-1225 Specifications
Product Attributes
| Coupling Description | GlobalSpiral Female DIN 24 Cone Swivel - Heavy Series w/ O-Ring - 90 Bent Tube |
| Industrial Description | 12GS-25FDHORX90 |
| Thread Size | M36X2.0 |
| Inside Diameter | .75 IN |
| Hydraulic Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Outside Diameter | 25 MM |
| Nut Hex Size | 46 MM |
| Drop Length | 2.52 IN |
| Cut-Off Length | 2.95 IN |
| Length | 4.86 IN |
| Inside Diameter | 19.1 MM |
| Drop Length | 64 MM |
| Cut-Off Length | 75 MM |
| Length | 123.4 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Stock Status | S |
| UPC | 00072053438031 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
