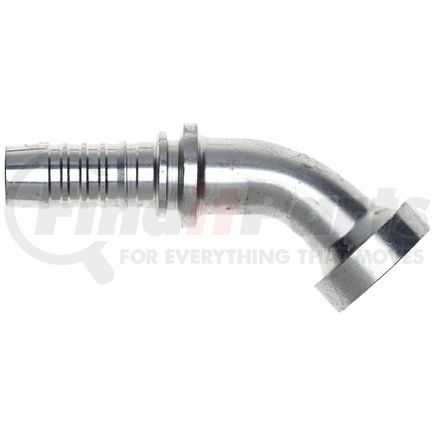

(888) 312-8812 Login SignupGATES G20407-1216 Caterpillar Style O-Ring Flange - 45 Bent Tube (GlobalSpiral)
Tap to view 2 more
$12499
Limited availability at this price!
In Stock
Get it by Thursday, Jul 23
GATES G20407-1216 Part Description
Manufacturer
Product Description
Caterpillar Style O-Ring Flange - 45 Bent Tube (GlobalSpiral)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250degF temperature capability for longer assembly life
- +250°F temperature capability for longer assembly life
- +250?F temperature capability for longer assembly life
- +250˚F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
GATES G20407-1216 Specifications
Product Attributes
| Coupling Description | GlobalSpiral Caterpillar Style O-Ring Flange - 45 Bent Tube |
| Industrial Description | 12GS-16FLC45-035 |
| Inside Diameter | .75 IN |
| Hydraulic Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Flange Thickness | .56 in |
| Flange Diameter | 1.88 IN |
| Drop Length | 1.38 IN |
| Cut-Off Length | 3.23 IN |
| Length | 5.24 IN |
| Inside Diameter | 19.1 MM |
| Flange Thickness | 14.2 MM |
| Flange Diameter | 47.8 MM |
| Drop Length | 35.1 MM |
| Cut-Off Length | 82 MM |
| Length | 133.1 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Country of Origin (Primary) | US |
| Stock Status | S |
| UPC | 00072053408379 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G20407-1216 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | 1E16CTA12, 4S16CTA12 |
| Dayco | 101852 |
| Goodyear | 28190-1216, 29190-1216, DG-CF45-1216 |
| N/A | 04031144, N12-16FLC45, M83941-12-16 |
| NAPA | G20407-1216 |
| Parker | 1XF78-16-12 |
| Weatherhead | 4SP12WG46, 4SP12WK46, 57012SK46, 57012S-K46 |
