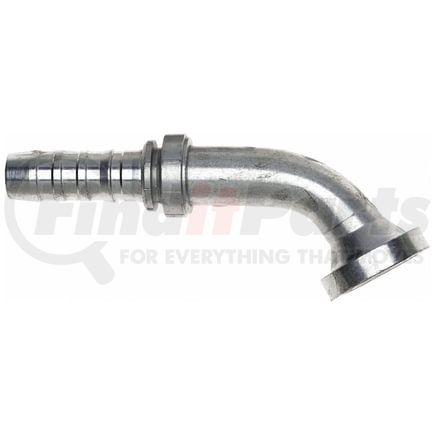

Gates G20359-1216 - Code 62 O-Ring Flange Heavy - 60 Bent Tube (GlobalSpiral)
$10999
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description
Code 62 O-Ring Flange Heavy - 60 Bent Tube (GlobalSpiral)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250degF temperature capability for longer assembly life
- +250°F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
Product Attributes
| Coupling Description | GlobalSpiral Code 62 O-Ring Flange Heavy - 60 Bent Tube |
| Industrial Description | 12GS-16FLH60M |
| Inside Diameter | .75 IN |
| Hydraulic Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Maximum Working Pressure | 6000 PS |
| Flange Thickness | .38 in |
| Flange Diameter | 1.88 IN |
| Drop Length | 1.73 IN |
| Cut-Off Length | 3.35 IN |
| Length | 5.35 IN |
| Inside Diameter | 19.1 MM |
| Flange Thickness | 9.7 MM |
| Flange Diameter | 47.8 MM |
| Drop Length | 43.9 MM |
| Cut-Off Length | 85 MM |
| Length | 135.9 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| Country of Origin (Primary) | US |
| UPC | 00072053465136 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
Part Interchanges
