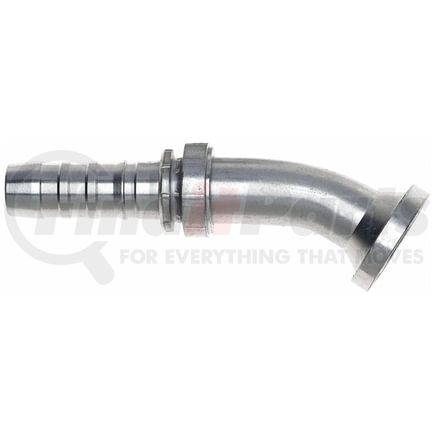

(888) 312-8812 Login SignupGATES G20304-1212 Code 61 O-Ring Flange - 30 Bent Tube (GlobalSpiral)
Tap to view 2 more
$7799
Limited availability at this price!
In Stock
Get it by Thursday, Jul 23
GATES G20304-1212 Part Description
Manufacturer
Product Description
Code 61 O-Ring Flange - 30 Bent Tube (GlobalSpiral)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250degF temperature capability for longer assembly life
- +250°F temperature capability for longer assembly life
- +250?F temperature capability for longer assembly life
- +250˚F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
GATES G20304-1212 Specifications
Product Attributes
| Coupling Description | GlobalSpiral Code 61 O-Ring Flange - 30 Bent Tube |
| Industrial Description | 12GS-12FL30M |
| Inside Diameter | .75 IN |
| Hydraulic Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Maximum Working Pressure | 5000 PS |
| Flange Thickness | .27 in |
| Flange Diameter | 1.5 IN |
| Drop Length | .63 IN |
| Cut-Off Length | 3.07 IN |
| Length | 5.08 IN |
| Inside Diameter | 19.1 MM |
| Flange Thickness | 6.9 MM |
| Flange Diameter | 38.1 MM |
| Drop Length | 16 MM |
| Cut-Off Length | 78 MM |
| Length | 129 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Country of Origin (Primary) | US |
| Stock Status | S |
| UPC | 00072053454598 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G20304-1212 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | 1B12FLF12, 4S12FLF12 |
| Dayco | 100174, 100174U, 102121, 1B12FLF12, FJ9787-1212S |
| Goodyear | 28335-1212, 29335-1212, S4-FL30-1212 |
| N/A | 04030936, M83331-12-12 |
| NAPA | G20304-1212 |
| Parker | 12671-12-12 |
| Weatherhead | 43012EH22, 43012UH22, 43012E-H22, 43012U-H22 |
