GATES G20179-1212 Part Description
Manufacturer
Product Description

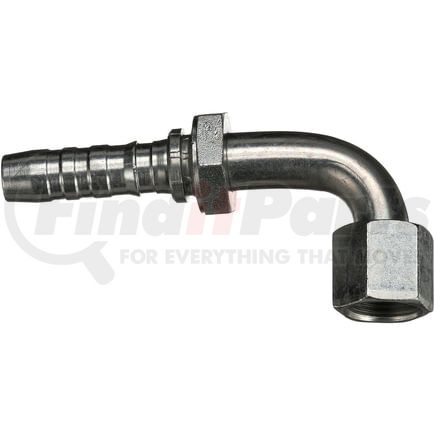

Female JIC 37 Flare Swivel - 90 Bent Tube (GlobalSpiral)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250 Deg. F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
GATES G20179-1212 Specifications
Product Attributes
| Coupling Description | GlobalSpiral Female JIC 37 Flare Swivel - 90 Bent Tube |
| Industrial Description | 12GS-12FJX90S |
| Thread Size | 1 1/16-12 |
| Inside Diameter | .75 IN |
| Hydraulic Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Nut Hex Size | 1.25 IN |
| Drop Length | 1.89 IN |
| Cut-Off Length | 2.68 IN |
| Length | 4.45 IN |
| Inside Diameter | 19.1 MM |
| Drop Length | 48 MM |
| Cut-Off Length | 68 MM |
| Length | 113 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Country of Origin (Primary) | US |
| Stock Status | S |
| UPC | 00072053402452 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G20179-1212 Cross References
| Brand | Part Number |
|---|---|
| Caterpillar | 14-8535, 432-2031, 6V-4678, 221-0469 |
| Goodyear | 28445-1212, 29445-1212, S4-JCFX90S-1212, S6-JCFX90-1212 |
| N/A | 04030758, 4004-1212, M82592-12-12, 6004-1212 |
| NAPA | G20179-1212 |
| Parker | 13971-12-12, 13977-12-12 |
| Weatherhead | 43012E652 |
