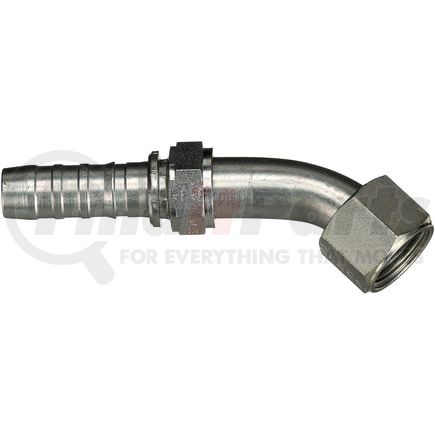

(888) 312-8812 Login SignupGATES G20174-1216 Female JIC 37 Flare Swivel - 45 Bent Tube (GlobalSpiral)
Tap to view 3 more
$11799
Limited availability at this price!
In Stock
Get it by Thursday, Jul 16
GATES G20174-1216 Part Description
Manufacturer
Product Description
Female JIC 37 Flare Swivel - 45 Bent Tube (GlobalSpiral)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250 Deg. F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
GATES G20174-1216 Specifications
Product Attributes
| Coupling Description | GlobalSpiral Female JIC 37 Flare Swivel - 45 Bent Tube |
| Industrial Description | 12GS-16FJX45S |
| Thread Size | 1 5/16-12 |
| Inside Diameter | .75 IN |
| Hydraulic Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Nut Hex Size | 1.5 IN |
| Drop Length | .94 IN |
| Cut-Off Length | 3.39 IN |
| Length | 5.39 IN |
| Inside Diameter | 19.1 MM |
| Drop Length | 23.9 MM |
| Cut-Off Length | 86 MM |
| Length | 136.9 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Country of Origin (Primary) | US |
| Stock Status | S |
| UPC | 00072053437430 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G20174-1216 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | 1EA16FJA12, 4SA16FJA12 |
| Continental Belt | SG-JCFX45-1216 |
| Goodyear | 29420-1216 |
| N/A | 04030741, C12422541-1216M, 612-1WM-696 |
| NAPA | G20174-1216 |
| Weatherhead | 4SP12W696 |
