GATES G20170-2024 Part Description
Manufacturer
Product Description

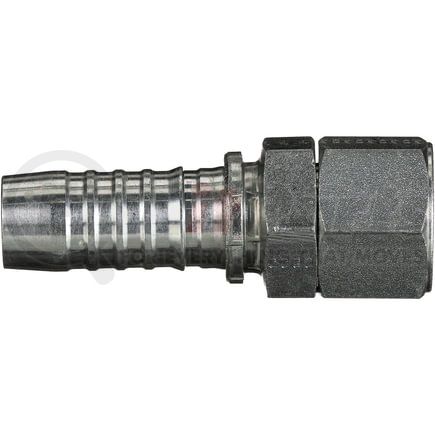

Female JIC 37 Flare Swivel (GlobalSpiral)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250 Deg. F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
GATES G20170-2024 Specifications
Product Attributes
| Coupling Description | GlobalSpiral Female JIC 37 Flare Swivel |
| Industrial Description | 20GS-24FJX |
| Thread Size | 1 7/8-12 |
| Inside Diameter | 1.25 IN |
| Hydraulic Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Stem Hex Size | 1.875 IN |
| Nut Hex Size | 2.375 IN |
| Cut-Off Length | 2.59 IN |
| Length | 5.39 IN |
| Inside Diameter | 31.8 MM |
| Cut-Off Length | 65.9 MM |
| Length | 136.9 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Stock Status | S |
| UPC | 00072053474725 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G20170-2024 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | 1ZA24FJ20, 1EA24FJ20, 6SA24FJ20, 4SA24FJ20 |
| Continental Belt | SG-JCFX-2024 |
| Dayco | 100671, 102016 |
| Goodyear | 28400-2024 |
| Kurt Hydraulics | FFX-20-24-W, FJX-20-24-W |
| N/A | 04030727, VS20-24FJ, 620-1W-624 |
| NAPA | G20170-2024 |
| Parker | 10671-24-20, 10677-24-20 |
| Weatherhead | 43020E624, 43020U624, 4SP20W624, 6SP20W624, 43020U-624, 43020E-624 |
