GATES G20100-0606 Part Description
Manufacturer
Product Description

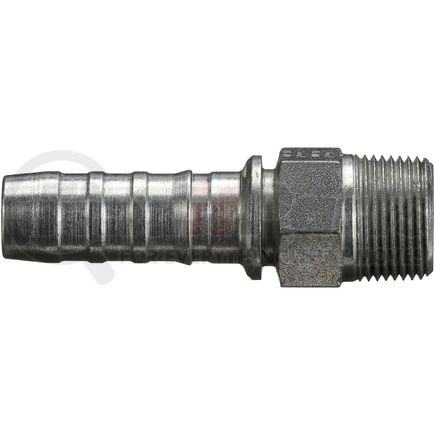

Male Pipe (NPTF - 30 Cone Seat) (GlobalSpiral)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250 Deg. F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
GATES G20100-0606 Specifications
Product Attributes
| Coupling Description | GlobalSpiral Male Pipe (NPTF - 30 Cone Seat) |
| Industrial Description | 6GS-6MP |
| Thread Size | 3/8-18 |
| Inside Diameter | .375 IN |
| Hydraulic Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Stem Hex Size | .6875 IN |
| Cut-Off Length | 1.31 IN |
| Length | 2.72 IN |
| Inside Diameter | 9.5 MM |
| Cut-Off Length | 33.2 MM |
| Length | 69.1 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Country of Origin (Primary) | US |
| Stock Status | S |
| UPC | 00072053437287 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G20100-0606 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | 1BA6MP6, 4SA6MP6 |
| Caterpillar | 221-0560, 2P-0921 |
| Continental Belt | S4-NPMX-0606, SG-NPM-0606 |
| Dayco | 1BA6MP6 |
| Goodyear | 28615-0606, 29615-0606, S4-NPM-0606 |
| Kurt Hydraulics | MP-06-06-W |
| N/A | 04030623, 4020-0606 |
| NAPA | G20100-0606 |
| Parker | 10170-6-6, 10171-06-06, 10171-6-6 |
| Weatherhead | 43006U-106, 43006U106 |
