GATES B78 Part Description
Manufacturer
Product Description

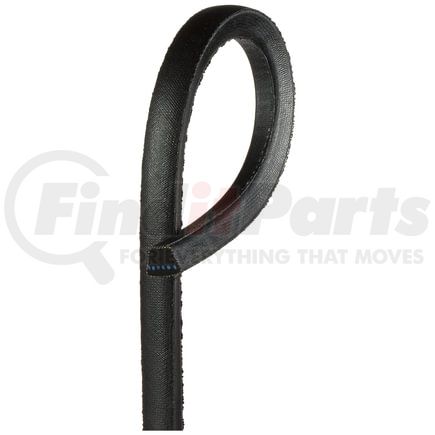

V-Belt - Classical Section Wrapped, 81" Outside Circumference, 0.66" Top Width
Application Summary
Cedar Rapids, BSF2, Continental HD277 Diesel, Gen.
Features & Benefits
- Smoother running with less slip and wear for excellent belt service life and reduced pulley wear
- High-quality rubber compound protects the belt against heat, ozone and sunlight
- Proprietary Flex-Weave cover is a patented fabric construction, providing extended protection to the belt core from oil, contaminants and heat for longer belt life
- Flex-bonded cords strongly adhere to the body of the belt, resulting in equal load distribution and absorption of bending stress, fatigue and shock loads without cord deterioration
- Meets RMA oil and heat resistant standards and static conductivity requirements
- Temperature Range: -22 Deg. F to +140 Deg. F (-30 Deg. C to +60 Deg. C)
- NOTE: Available in A, B, C, D and E cross-sections as well as Hi-Power II PowerBand V-belts
GATES B78 Specifications
Product Attributes
| Cord Material | Polyester |
| Type | Classical Section Wrapped V-Belt |
| Cross Section Designation | B |
| Strand Quantity | 1 |
| Top Width | .66 in |
| Outside Circumference | 81 in |
| Construction | Wrapped |
| Notched | No |
| Belt Material | EPDM |
| Top Width | 17 mm |
| Outside Circumference | 2057 mm |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4010343000 |
| Country of Origin (Primary) | MX |
| UPC | 00072053019636 |
| VMRS Code | 065005003 |
| UNSPSC | 26111801 |
GATES B78 Cross References
| Brand | Part Number |
|---|---|
| 90036078 | |
| <Unknown> | 113B58, 11837184, 5517E, 5H59829A78, 5H59831A78, BEL017, BET63, HP31, P83076 |
| ACDelco | IB78 |
| Allis Chalmers | 4407149, 4616621, 71183718, DL7149 |
| Art Way Manufacturing Co | A7350 |
| Blue Bird | 0870360 |
| Browning Manufacturing | B78 |
| CARQUEST | B78 |
| CCIL Canada | 00012478 |
| CONTINENTAL AG | B78 |
| Campbell Hausfeld | BT004319AV, BT4319 |
| Case Tractor | 04105BF |
| Climax Engr | 22CX40 |
| Cockshutt | 9810070 |
| Dayco | BP78 |
| Demco | 3X644 |
| Devilbiss | BT39 |
| Frigidaire | 639315 |
| GOODYEAR BELTS | B78 |
| Gardner Denver | 13C10, 13E347 |
| Glisson | NYTRODRI |
| Goodyear | 77078, B78 |
| Grainger | 3X644 |
| Haban | S450 |
| Hesston | 055129, 056416 |
| Innes | 2500807 |
| John Deere | AN115162, E4304E, J18477, L1711C |
| Kent | 78B |
| Lockwood | 04050005, 405120 |
| Long | 730700 |
| Lundell | 2887L1 |
| Massey Ferguson | 1508602M1, 842845M1 |
| Metric | 16C2060 |
| NAPA | B78 |
| NAPA Belts/Hose | B78 |
| New Holland | 635560 |
| New Idea | 676262 |
| PIX | A-B78 |
| Prevost | 506103 |
| Reliance Electric | 107046 |
| U.S. Government | 3030003876421 |
| Western Auto | 200983 |
| Western Land Roller | 8007B |
| White | 320016470, CO7020, PO3230, B6736 |
| Yazoo | 205068 |
